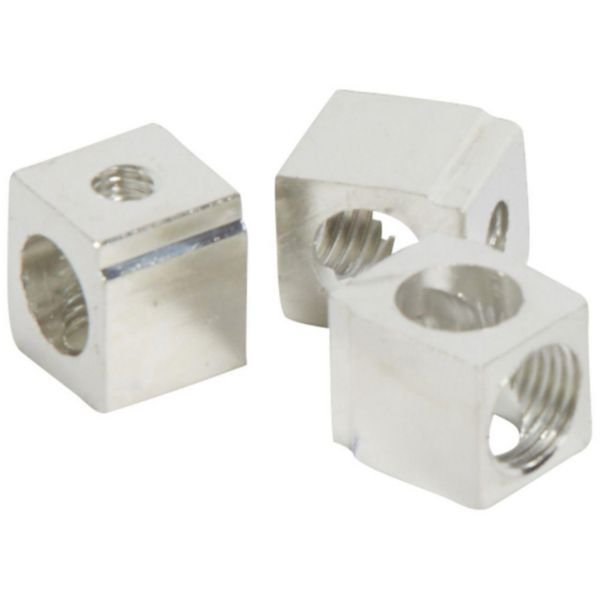

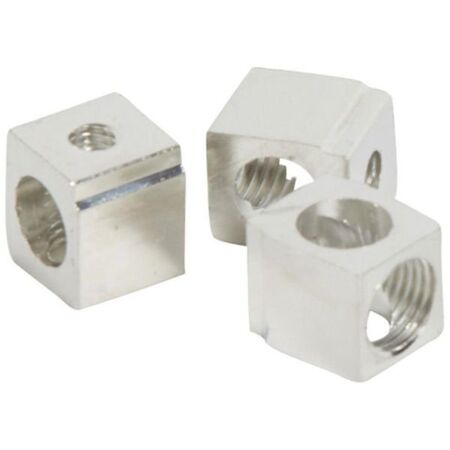

Cage Terminals for DRX 100 | 4P | 60 to 100 A Current Rating | Includes Fixing Screws | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 027173
$82.20 List price: $102.40
+ −
30 Days Return Delivery Options
Cage terminals for DRX 100 are designed for reliable switching and protection of low-voltage electrical lines, compatible with DRX 125 thermal magnetic MCCBs. With a current rating from 60 to 100 A and supplied with M5 and M8 terminals, these 4-pole connectors ensure safe and efficient installations in switchboards and power cabinets.

Product Name/Title: Cage Terminals for DRX 100 | 4P | 60 to 100 A Current Rating | Includes Fixing Screws | @EA of 1 | by Legrand

Brand: Legrand

SKU: 027173

Alternatively Known As: Cage terminal connectors, DRX 100 cage terminals, 4P cage terminals, MCCB cage terminals

Technical Specifications
  • Type: Switching piece accessory/spare part
  • Compatible with DRX 125 thermal magnetic MCCBs
  • Current rating: 60 to 100 A
  • Poles: 4P
  • Terminals: M5 for ≤ 50 A, M8 for > 50 A
  • Includes fixing screws and insulating shields
  • Standards: IEC 60947-2, NEMA compliance
  • Dimensions (H x L x W): 40mm x 100mm x 80mm
  • Weight: 0.3 kg
Key Features
  • Suitable for DRX 125 thermal magnetic MCCBs from 15 to 125 A
  • Can be fitted with auxiliaries
  • Supplied with M5 terminal for In ≤ 50 A and M8 terminal for In > 50 A
  • Includes fixing screws and insulating shields (2 for 3P and 3 for 4P)
  • Fixed thermal and magnetic protection
  • Conforms to IEC 60947-2 and complies with NEMA standards
  • 4-pole cage terminals for current ratings from 60 to 100 A
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
  • Switching, control, isolation, and protection of low-voltage electrical lines
  • Use in switchboards and power cabinets
  • Compatible with DRX 125 thermal magnetic MCCBs
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Compliant with international safety standards ensuring safe electrical installations
Warranty Information

Legrand standard warranty applies, typically 1 to 3 years depending on region and product registration.

Available Now

Legrand Cage Terminals for DRX 100 4P from 60 to 100 A are available for immediate purchase, ideal for use in switchboards and power cabinets for low-voltage electrical protection.
