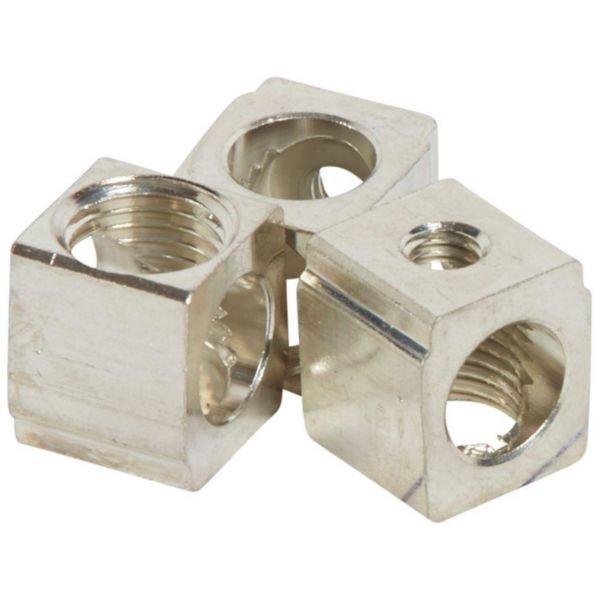

Cage Terminals for DRX 100 | Set of 60 | 60 to 100 A | Includes M5 & M8 Terminals | @Each of 1 | by Legrand
Cage terminals for DRX 100 are designed for current ratings from 60 to 100 A, making them ideal for switching, control, and protection of low-voltage electrical lines. This set of 60 terminals includes M5 and M8 sizes, ensuring compatibility with DRX 125 thermal magnetic MCCBs. Supplied with fixing screws and insulating shields, these terminals conform to IEC 60947-2 and NEMA standards, providing reliable performance for industrial and commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cage Terminals for DRX 100 | Set of 60 | 60 to 100 A | Includes M5 & M8 Terminals | @Each of 1 | by Legrand
Brand: Legrand
SKU: 027193
Alternatively Known As: Cage Terminal Connectors, MCCB Cage Terminals, DRX 100 Terminal Set, Electrical Cage Terminals
Technical Specifications
- Accessory type: Switching piece
- Compatible with DRX 125 thermal magnetic MCCBs from 15 to 125 A
- Terminal sizes: M5 for ≤ 50 A, M8 for > 50 A
- Includes fixing screws and insulating shields
- Conforms to IEC 60947-2 standard
- Complies with NEMA requirements
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.2 kg
Key Features
- Set of 60 cage terminals for current ratings from 60 to 100 A
- Compatible with DRX 125 thermal magnetic MCCBs
- Includes M5 terminals for ≤ 50 A and M8 terminals for > 50 A
- Supplied with fixing screws and insulating shields (2 for 3P and 3 for 4P)
- Fixed thermal and magnetic protection
- Conforms to IEC 60947-2 and complies with NEMA standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Switching, control, isolation, and protection of low-voltage electrical lines
- Use with DRX 125 thermal magnetic MCCBs from 15 to 125 A
- Suitable for industrial and commercial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Supports efficient electrical connections that reduce energy loss
Warranty Information
Legrand standard warranty applies, typically 1 to 3 years depending on region and product registration.
Available Now
Legrand Cage Terminals (60) for DRX 100 are available for immediate purchase, ideal for electrical switchboard and power cabinet applications.
