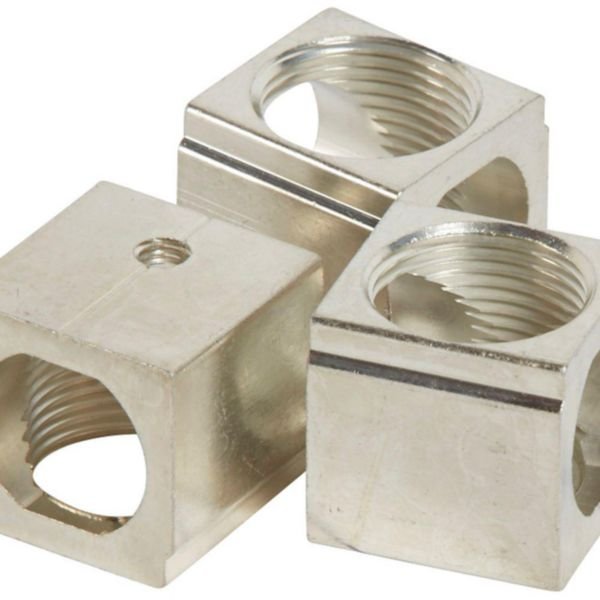

Cage Terminals for DRX 250 | Set of 60 | M8 Terminals & Insulating Shields | by Legrand

BRAND: Legrand
SKU: 27194
$2,988.40 List price: $3,724.00
1 EA ($2,988.40 per EA)
+ −
30 Days Return Delivery Options
Cage terminals designed for DRX 250 MCCBs, this set includes 60 M8 terminals with fixing screws and insulating shields for both 3-pole and 4-pole configurations. Ideal for electrical switchboards and power cabinets, these terminals ensure reliable switching, control, and protection of low-voltage electrical lines, conforming to IEC 60947-2 standards.
Technical Specifications
  • Compatible with DRX 250 thermal magnetic MCCBs rated from 125 to 250 A
  • Includes 60 cage terminals with M8 terminals and fixing screws
  • Insulating shields included: 2 for 3-pole and 3 for 4-pole configurations
  • Conforms to IEC 60947-2 for low-voltage switchgear and controlgear
  • Dimensions (H x L x W): 50mm x 150mm x 100mm
  • Weight: 0.2 kg
Key Features
  • Set of 60 cage terminals designed for DRX 250 MCCBs
  • Includes M8 terminals, fixing screws, and insulating shields (2 for 3P and 3 for 4P)
  • Fixed thermal and magnetic protection
  • Conforms to IEC 60947-2 standards
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper connection.
Applications
  • Used with DRX 250 thermal magnetic MCCBs for switching, control, isolation, and protection of low-voltage electrical lines
  • Suitable for electrical switchboards and power cabinets
  • Compatible with circuit breakers and moulded case switches
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste
  • Supports efficient electrical connections that help maintain system energy efficiency
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

Legrand Cage Terminals (60) for DRX 250 MCCB are available for immediate purchase, ideal for electrical switchboard assembly and maintenance.

Y1217H (Y1217H.pdf, 631 Kb) [Download]

ex223001_0141 (ex223001_0141.pdf, 39 Kb) [Download]

ex223001_0139 (ex223001_0139.pdf, 50 Kb) [Download]

ex223001_0133 (ex223001_0133.pdf, 152 Kb) [Download]
