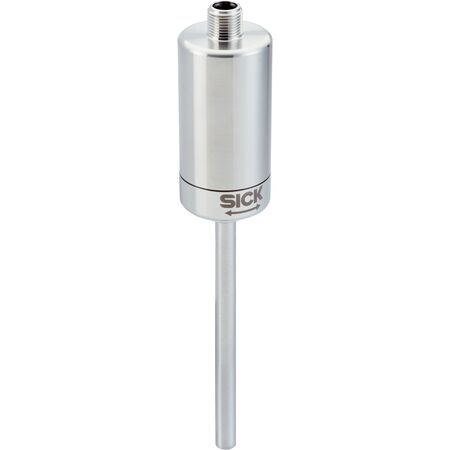

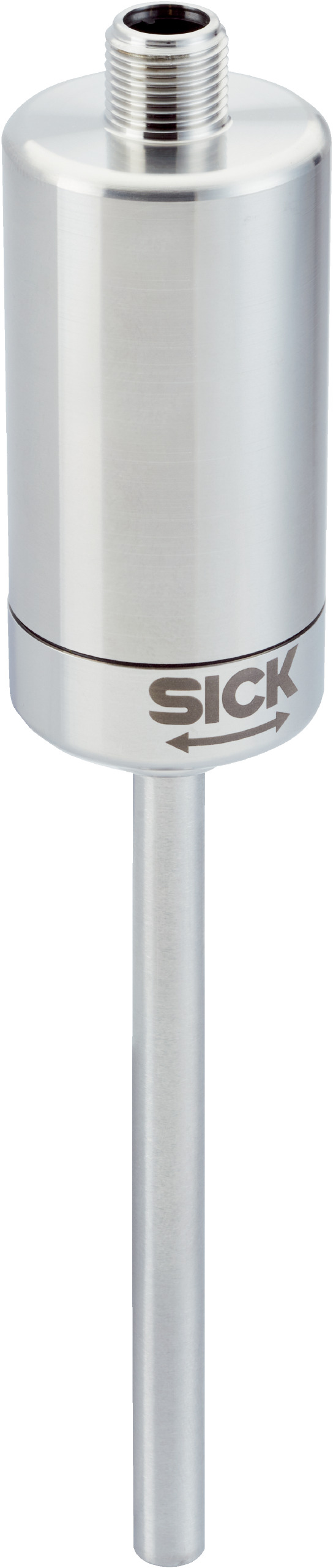

Calorimetric Flow Sensor FTS-H060F04A | Accurate Flow Detection | IP67/IP69 Rated | by SICK
The FTS-H060F04A Calorimetric Flow Sensor is designed for precise flow measurement in industrial applications, capable of detecting flow velocities from 3 cm/s to 600 cm/s. With a robust stainless steel housing and an IP67/IP69 protection rating, it ensures durability in harsh environments. Ideal for monitoring water and oil-based liquids, this sensor features integrated temperature measurement and IO-Link communication for seamless integration into your process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 20mm x 60mm x 20mm
- Weight: 0.2 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Measuring range from 3 cm/s up to 600 cm/s depending on media
- Process temperature range from -40 °C to +150 °C
- Process pressure tolerance up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s data rate
- Integrated temperature measurement with ±1 °C accuracy
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Robust stainless steel housing with IP67/IP69 protection rating
- Low power consumption under 8 W at maximum load
Professional Installation Requirements
- Installation requires a qualified technician with knowledge of IO-Link communication and appropriate process connection adapters.
Applications
- Measurement of flow velocity in water and oil-based liquids
- Industrial process monitoring requiring precise flow and temperature measurement
- Suitable for pipe diameters ≥ 25 mm
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise monitoring and control of fluid flow, reducing waste and improving process efficiency
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK FTS-H060F04A flow sensor is available for immediate purchase, ideal for industrial fluid flow measurement and process control applications.
