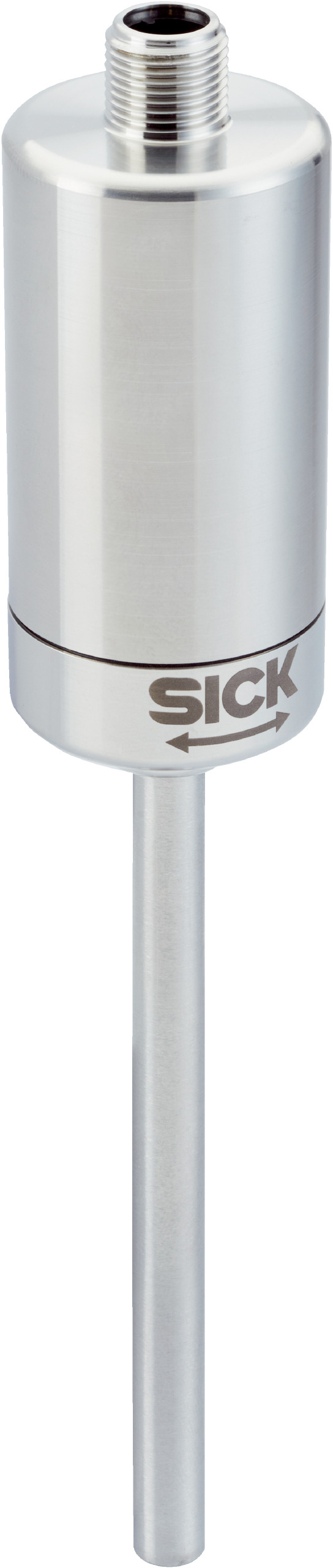

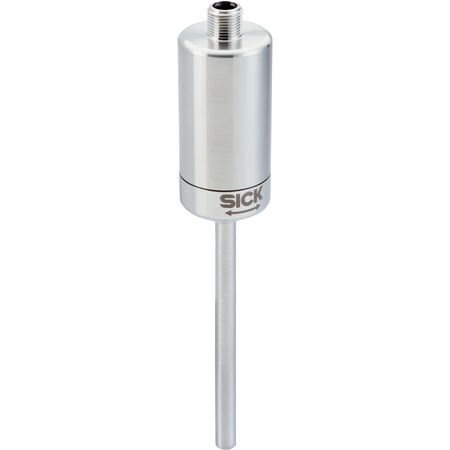

Calorimetric Flow Sensor FTS-H060F04B | Accurate Flow Detection | IP67/IP69 Rated | by SICK
The Calorimetric Flow Sensor FTS-H060F04B is designed for precise flow measurement in water and oil-based liquids, featuring a measuring range of 3 cm/s to 600 cm/s. With a robust IP67/IP69 rating and a temperature range of -40 °C to +150 °C, it's perfect for industrial applications requiring reliable flow and temperature monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Medium: Water and oil-based liquids
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on media
- Process temperature: -40 °C to +150 °C
- Process pressure: -1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Repeatability: < 1 cm/s
- Response time: < 2.5 s
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: < 2 W (no load), < 8 W (max load)
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signals: 2 push-pull digital outputs configurable for flow and temperature
- Enclosure rating: IP67 / IP69
- Probe diameter: 8 mm
- Probe length: 60 mm
- Minimum immersion length: 12 mm
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 20mm x 60mm x 20mm
- Weight: 0.5 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on media
- Process temperature range from -40 °C to +150 °C
- Process pressure tolerance up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Integrated temperature measurement with ±1 °C accuracy
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Fast response time under 2.5 seconds
- Robust stainless steel housing and wetted parts
- Protection rating IP67 / IP69 for harsh environments
- M12 round connector, 4-pin for easy connection
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Measurement of flow velocity in water and oil-based liquids
- Industrial process monitoring requiring precise flow and temperature measurement
- Use in pipes with diameters ≥ 25 mm
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise monitoring and control of fluid flow, reducing waste and improving process efficiency
- Durable stainless steel construction extends product life, reducing replacement frequency
- Low power consumption under 8 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FTS-H060F04B Calorimetric Flow Sensor is available for immediate purchase, ideal for industrial flow measurement applications in water and oil-based liquids.
