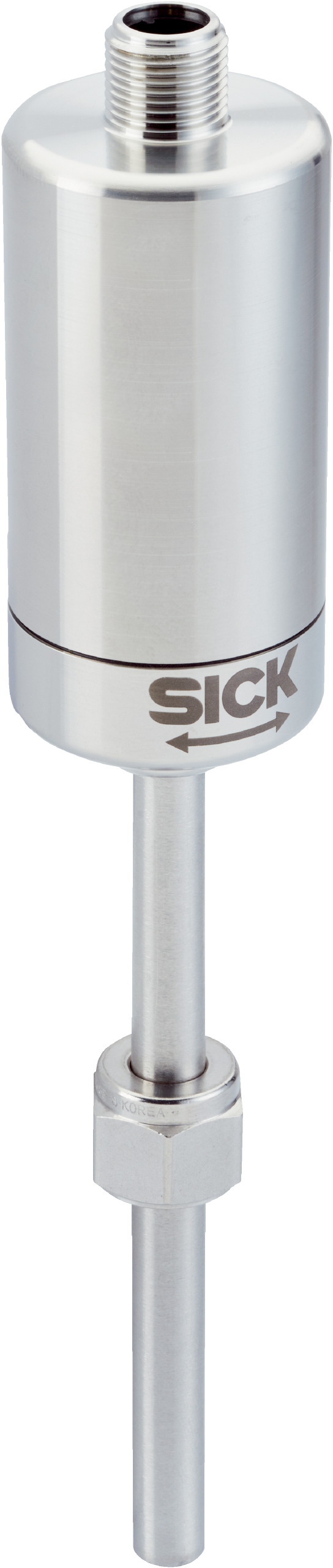

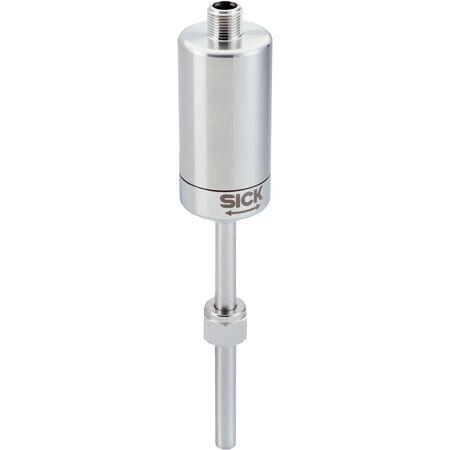

Calorimetric Flow Sensor FTS-H061F04A | Measuring Range 3-600 cm/s | IP67/IP69 Rated | by SICK
The Calorimetric Flow Sensor FTS-H061F04A is designed for precise flow measurement in water and oil-based liquids, featuring a measuring range of 3 cm/s to 600 cm/s. With a robust IP67/IP69 enclosure and a temperature range of -40 °C to +150 °C, this sensor is perfect for industrial process monitoring and ensures high accuracy and repeatability for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Medium: Water and oil-based liquids
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on media
- Process temperature: -40 °C to +150 °C
- Process pressure: -1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Repeatability: < 1 cm/s
- Response time: < 2.5 s
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: < 2 W (no load), < 8 W (max load)
- Protection class: III
- Enclosure rating: IP67 / IP69
- Connection type: M12 round connector, 4-pin
- Output signal: 2 push-pull digital outputs configurable for flow and temperature
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.5 kg
Key Features
- Calorimetric measurement process
- Measuring range: 3 cm/s to 600 cm/s depending on media
- Process temperature range: -40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication via IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement included with ±1 °C accuracy
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability < 1 cm/s
- Response time < 2.5 s
- Power consumption < 8 W at maximum load
- Protection class III with IP67 / IP69 enclosure rating
- Stainless steel wetted parts and housing
- M12 round connector, 4-pin
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial flow measurement systems to ensure proper integration and safety.
Applications
- Flow measurement in water and oil-based liquids
- Industrial process monitoring
- Pipe diameters ≥ 25 mm
- Suitable for use with SICK T-connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise flow monitoring to optimize fluid usage and reduce waste
- Durable stainless steel construction extends product life and reduces replacement frequency
- Low power consumption minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FTS-H061F04A flow sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise liquid flow measurement.
