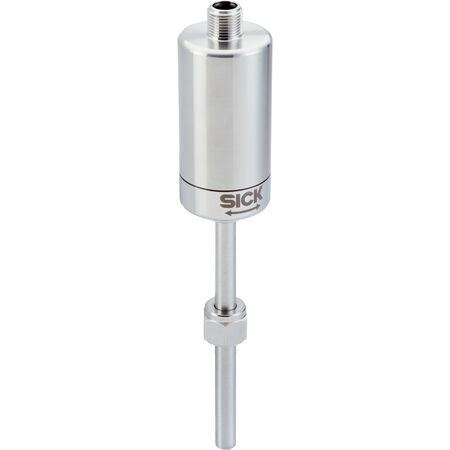

Calorimetric Flow Sensor FTS-H061F04B | Accurate Flow Detection | IP67/IP69 Rated | by SICK
The Calorimetric Flow Sensor FTS-H061F04B is designed for precise measurement of water and oil-based liquids in industrial applications. With a measuring range of 3 cm/s to 600 cm/s and a robust IP67/IP69 protection rating, it ensures reliable performance even in harsh environments. Ideal for process monitoring and control, this sensor features integrated temperature measurement with ±1 °C accuracy, making it a perfect choice for demanding fluid flow applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Medium: Water and oil-based liquids
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on medium
- Process temperature: -40 °C to +150 °C
- Process pressure: -1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Power supply: 9 V DC to 30 V DC
- Power consumption: < 2 W (no load), < 8 W (max load)
- Protection class: III
- Enclosure rating: IP67 / IP69
- Connection type: M12 round connector, 4-pin
- Output signals: 2 push-pull digital outputs configurable for flow and temperature
- Measurement accuracy: ±7% of measured value + 2% of measuring range end value
- Repeatability: < 1 cm/s
- Response time: < 2.5 s
- MTTF: > 200 years
- Dimensions (H x L x W): 20mm x 60mm x 20mm
- Weight: 0.5 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on medium
- Process temperature range from -40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Integrated temperature measurement with ±1 °C accuracy
- High protection rating IP67 / IP69 for harsh environments
- Stainless steel wetted parts and housing for durability
- Low power consumption under 8 W at maximum load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial flow measurement systems to ensure proper setup and calibration.
Applications
- Measurement of flow in water and oil-based liquids in pipes with diameter ≥ 25 mm
- Industrial process monitoring and control
- Flow and temperature measurement in pipelines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient monitoring and control of fluid flow, reducing waste and energy consumption
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FTS-H061F04B flow sensor is available for immediate purchase, ideal for industrial fluid flow measurement applications requiring high accuracy and durability.
