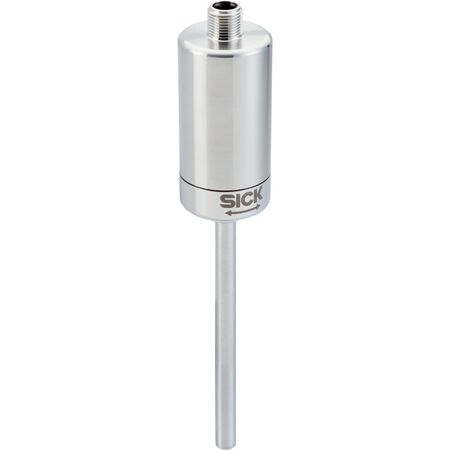

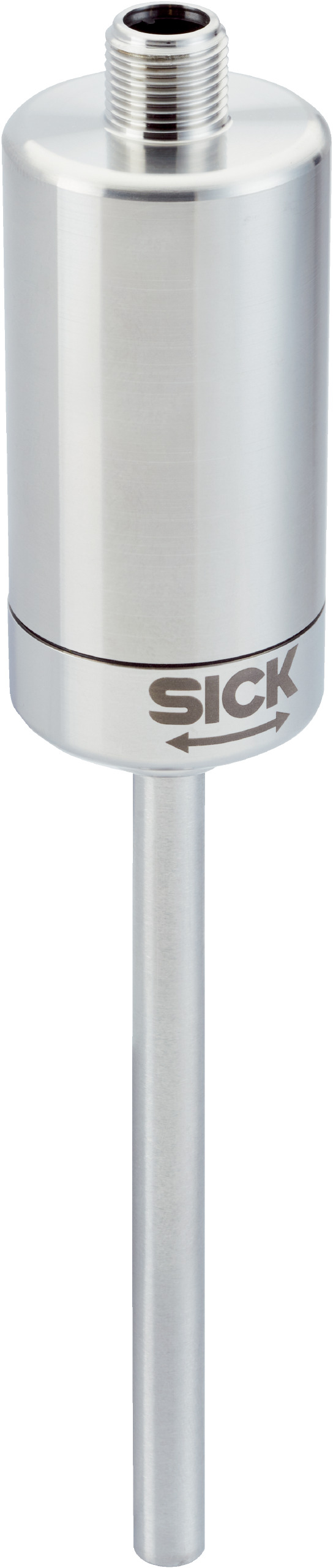

Calorimetric Flow Sensor FTS-H100F04A | Water & Oil-Based Liquids | IP67/IP69 Protection | by SICK
The Calorimetric Flow Sensor FTS-H100F04A is designed for precise flow measurement in water and oil-based liquids, featuring a measuring range of 3 cm/s to 600 cm/s. With a robust stainless steel housing and IP67/IP69 protection, it’s perfect for industrial applications requiring accurate flow and temperature monitoring. Ideal for pipes with diameters of 25 mm or more, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Medium: Water and oil-based liquids
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on medium
- Process temperature: -40 °C to +150 °C
- Process pressure: -1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Repeatability: < 1 cm/s
- Response time: < 2.5 s
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: < 2 W at 24 V DC (no load), < 8 W max load
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signal: 2 push-pull digital outputs configurable for flow and temperature
- Enclosure rating: IP67 / IP69
- Material: Stainless steel 1.4305 / 303 housing, wetted parts stainless steel 1.4404
- Dimensions (H x L x W): 8mm x 100mm x 8mm
- Weight: 0.2 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on medium
- Process temperature range from -40 °C to +150 °C
- Process pressure tolerance up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Integrated temperature measurement with ±1 °C accuracy
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Fast response time under 2.5 seconds
- Robust stainless steel housing with IP67/IP69 protection rating
- M12 round connector, 4-pin for easy integration
- Low power consumption under 8 W at maximum load
Professional Installation Requirements
- Installation requires a qualified technician to ensure proper adapter use and secure connection to the process pipe and electrical system.
Applications
- Measurement of flow velocity in water and oil-based liquids
- Industrial process monitoring requiring precise flow and temperature measurement
- Use in pipes with diameters ≥ 25 mm
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise monitoring and control of fluid flow, reducing waste and improving process efficiency
- Low power consumption contributes to energy savings
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FTS-H100F04A flow sensor is available for immediate purchase, ideal for industrial fluid flow measurement applications.
