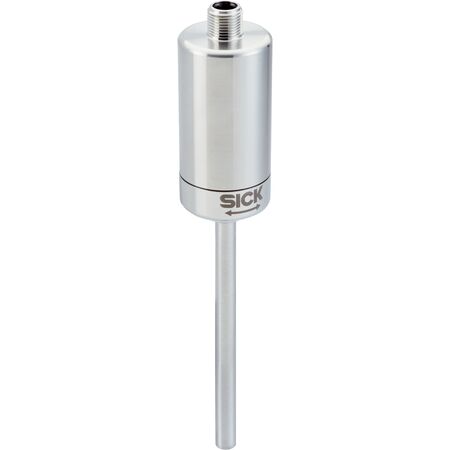

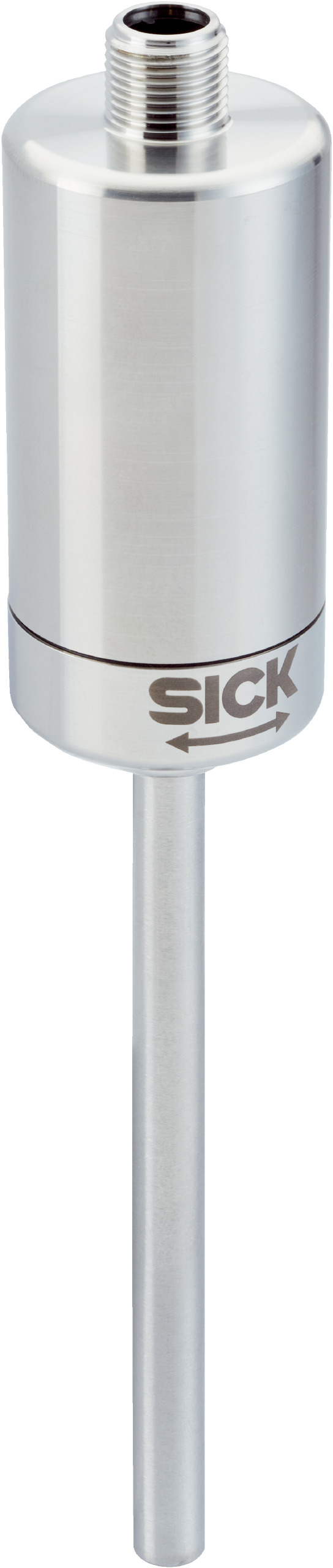

Calorimetric Flow Sensor FTS-H100F04B | IO-Link Communication | IP67/IP69 Protection | by SICK
The Calorimetric Flow Sensor FTS-H100F04B is designed for accurate flow measurement of water and oil-based liquids, featuring a measuring range of 3 cm/s to 600 cm/s. With an IO-Link communication interface and robust IP67/IP69 protection, it's perfect for industrial process monitoring and control applications, ensuring precise flow and temperature measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Medium: Water and oil-based liquids
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on medium
- Process temperature: -40 °C to +150 °C
- Process pressure: -1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Temperature measurement resolution: < 0.1 °C
- Response time: < 2.5 s for flow, < 5 s for temperature
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: < 2 W at 24 V DC (no load), < 8 W max load
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signals: 2 push-pull digital outputs configurable for flow and temperature
- Enclosure rating: IP67 / IP69
- Probe diameter: 8 mm
- Probe length: 100 mm
- Dimensions (H x L x W): 20mm x 100mm x 20mm
- Weight: 0.5 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on medium
- Process temperature range from -40 °C to +150 °C
- Process pressure tolerance up to 100 bar depending on connector
- IO-Link V1.1 communication interface with configurable digital and analog outputs
- Temperature measurement included with ±1 °C accuracy
- Robust stainless steel housing with IP67 / IP69 protection rating
- M12 round connector, 4-pin for easy connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial flow measurement systems to ensure proper setup and calibration.
Applications
- Measurement of flow in water and oil-based liquids in pipes with diameter ≥ 25 mm
- Industrial process monitoring requiring precise flow and temperature measurement
- Applications requiring IO-Link communication interface for integration
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise flow measurement to optimize fluid usage and reduce waste
- Supports energy-efficient process control through accurate monitoring
- Durable stainless steel construction extends product life and reduces replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FTS-H100F04B flow sensor is available for immediate purchase, ideal for industrial process monitoring and control applications requiring precise liquid flow measurement.
