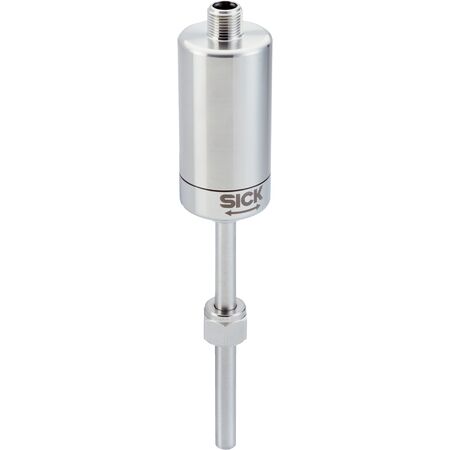

Calorimetric Flow Sensor FTS-H101F04A | Water & Oil-Based Liquids | IP67/IP69 Protection | by SICK
The FTS-H101F04A calorimetric flow sensor is designed for precise measurement of water and oil-based liquids, with a measuring range of 3 cm/s to 600 cm/s. Ideal for industrial process monitoring, it features a robust IP67/IP69 protection class and a wide process temperature range of -40 °C to +150 °C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric measurement process
- Medium: Water and oil-based liquids
- Pipe diameters: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on media
- Process temperature: –40 °C to +150 °C
- Process pressure: –1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Repeatability: < 1 cm/s
- Response time: < 2.5 s
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: < 2 W at 24 V DC (no load), < 8 W max load
- Protection class: IP67 / IP69
- Connection type: M12 round connector, 4-pin
- Output signal: 2 push-pull digital outputs configurable for flow and temperature
- Dimensions (H x L x W): 20mm x 100mm x 20mm
- Weight: 0.5 kg
Key Features
- Calorimetric measurement process
- Suitable for water and oil-based liquids
- Measuring range: 3 cm/s to 600 cm/s depending on media
- Process temperature range: –40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement included with ±1 °C accuracy
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability < 1 cm/s
- Response time < 2.5 s
- Protection class IP67 / IP69
- Stainless steel wetted parts and housing
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Measurement of flow in water and oil-based liquids
- Industrial process monitoring
- Pipe diameters ≥ 25 mm
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise monitoring and control of fluid flow, reducing waste and improving process efficiency
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FTS-H101F04A flow sensor is available for immediate purchase, ideal for industrial and process monitoring applications requiring precise flow measurement.
