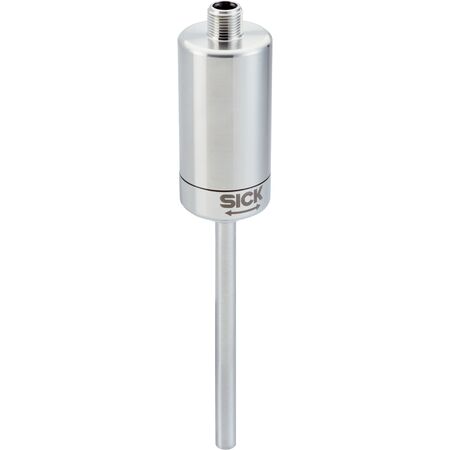

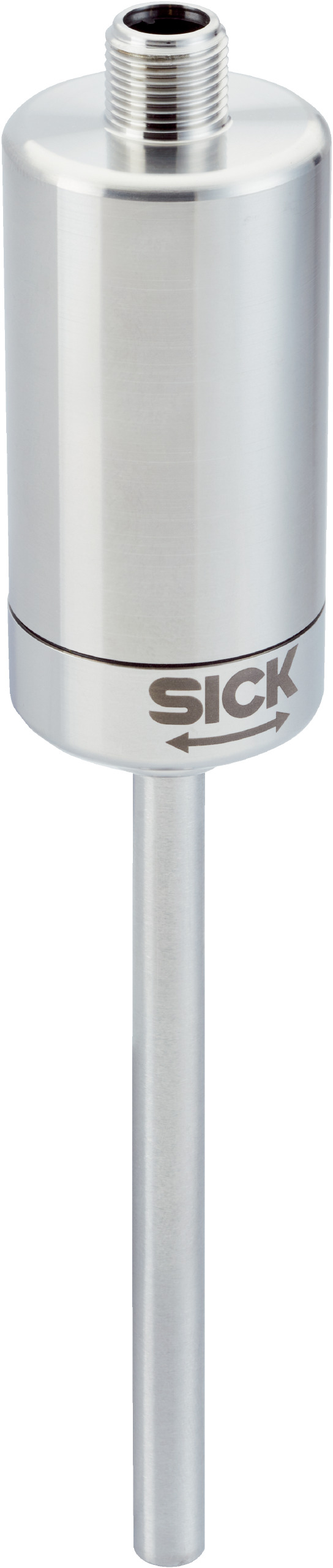

Calorimetric Flow Sensor FTS-H200F04A | Accurate Flow Detection | IP67/IP69 Rated | by SICK
The FTS-H200F04A Calorimetric Flow Sensor is designed for precise flow measurement in water and oil-based liquids, featuring a measuring range from 3 cm/s to 600 cm/s. With robust stainless steel housing and an IP67/IP69 protection rating, it's perfect for industrial process monitoring and control, ensuring high measurement accuracy and integrated temperature measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 8mm x 200mm x 8mm
- Weight: 0.21 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on media
- Process temperature range from -40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Integrated temperature measurement with ±1 °C accuracy
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Robust stainless steel housing with IP67 / IP69 protection rating
- M12 round connector, 4-pin for easy connection
Professional Installation Requirements
- Installation requires a qualified technician familiar with flow sensor setup and IO-Link communication protocols. Adapter needed for process connection installation.
Applications
- Measurement of flow velocity in water and oil-based liquids
- Industrial process monitoring and control
- Flow measurement in pipes with diameters ≥ 25 mm
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise flow monitoring to optimize fluid usage and reduce waste
- Durable stainless steel construction extends product life and reduces replacement frequency
- Low power consumption under 8 W at maximum load
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK FTS-H200F04A flow sensor is available for immediate purchase, ideal for industrial process monitoring and fluid flow measurement applications.
