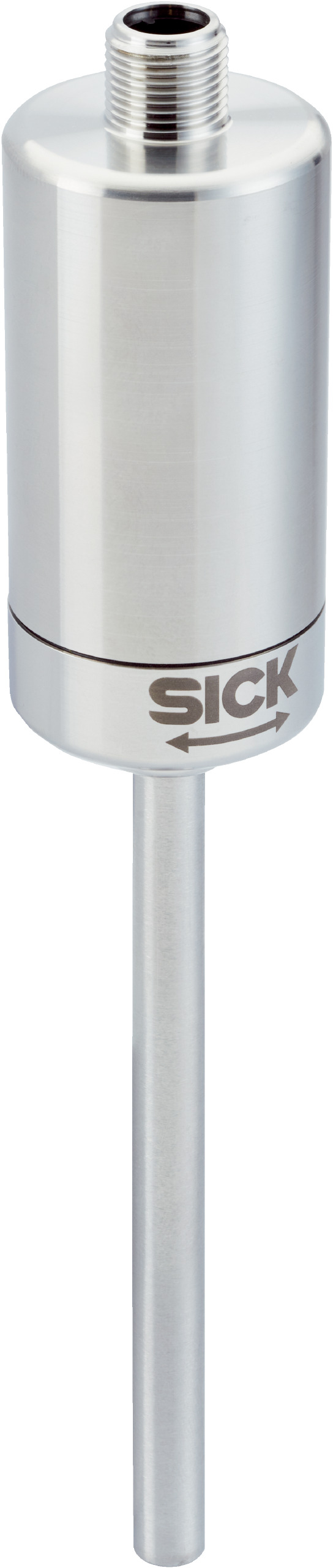

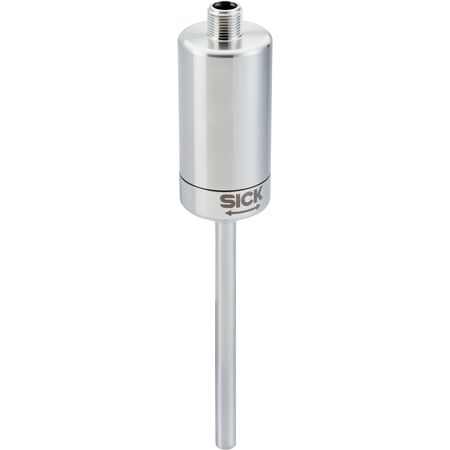

Calorimetric Flow Sensor FTS-H200F04B | IO-Link Communication | IP67/IP69 Protection | by SICK
The Calorimetric Flow Sensor FTS-H200F04B is designed for precise flow measurement in water and oil-based liquids, featuring a measuring range of 3 cm/s to 600 cm/s. With an impressive process temperature range of -40 °C to +150 °C and IP67/IP69 protection, it's perfect for industrial applications requiring reliable monitoring and control. Ideal for hydraulic and lubrication systems, this sensor ensures efficient operation and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Medium: Water and oil-based liquids
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on medium
- Process temperature: -40 °C to +150 °C
- Process pressure: -1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Temperature measurement resolution: < 0.1 °C
- Response time flow: < 2.5 s
- Response time temperature: < 5 s
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: < 2 W (no load), < 8 W (max load)
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signals: 2 push-pull digital outputs configurable for flow and temperature
- Enclosure rating: IP67 / IP69
- Probe diameter: 8 mm
- Probe length: 200 mm
- Dimensions (H x L x W): 20mm x 200mm x 20mm
- Weight: 0.5 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on medium
- Process temperature range from -40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Integrated temperature measurement with ±1 °C accuracy
- High protection rating IP67 / IP69 for harsh environments
- Stainless steel wetted parts and housing for durability
- Fast response time under 2.5 seconds for flow measurement
Professional Installation Requirements
- Installation requires a qualified technician familiar with IO-Link devices and industrial flow measurement systems to ensure proper setup and calibration.
Applications
- Measurement of flow in water and oil-based liquids in pipes with diameter ≥ 25 mm
- Industrial process monitoring and control
- Flow and temperature measurement in hydraulic and lubrication systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient monitoring and control of fluid flow to reduce waste and energy consumption
- Durable stainless steel construction reduces replacement frequency and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK FTS-H200F04B Calorimetric Flow Sensor is available for immediate purchase, ideal for industrial fluid flow monitoring and control applications.
