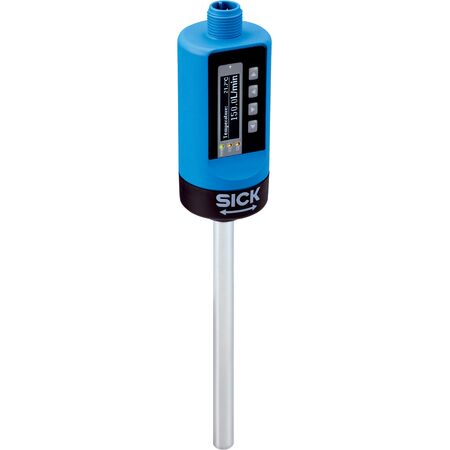

Calorimetric Flow Sensor FTS-I060F14A | IO-Link Communication | IP67 Rated | by SICK
The Calorimetric Flow Sensor FTS-I060F14A is designed for precise flow measurement in water and oil-based liquids, featuring a measuring range of 3 cm/s to 600 cm/s. With an IP67 rating and robust stainless steel construction, it's perfect for industrial applications requiring temperature monitoring from -40 °C to +150 °C. Ideal for process control, this sensor ensures accurate readings and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on media
- Process temperature: -40 °C to +150 °C
- Process pressure: -1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Temperature measurement resolution: <0.1 °C
- Response time flow: <2.5 s
- Response time temperature: <5 s
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: <2 W at 24 V DC without load, <8 W at max load
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signals: 2 push-pull digital outputs configurable for flow and temperature
- Enclosure rating: IP67
- Wetted parts material: Stainless steel 1.4404 (Ra ≤ 0.8 µm)
- Housing material: VISTAL® (PA66+PA6I GF50)
- Weight: 74 g
- Probe diameter: 8 mm
- Probe length: 60 mm
- Minimum immersion length: 12 mm
- Distance to pipe wall: 10 mm
- Dimensions (H x L x W): 20mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on media
- Process temperature range from -40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Integrated temperature measurement with ±1 °C accuracy
- OLED display with 3 status LEDs for easy monitoring
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Robust IP67 rated housing with stainless steel wetted parts
- Low power consumption under 8 W at maximum load
Professional Installation Requirements
- Installation requires a qualified technician familiar with IO-Link communication and industrial flow sensor setup. Proper adapter and mounting for pipe connection are necessary.
Applications
- Measurement of flow in water and oil-based liquids in pipes with diameters ≥ 25 mm
- Industrial process monitoring requiring precise flow and temperature measurement
- Use in environments with process temperatures from -40 °C to +150 °C and pressures up to 100 bar
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise monitoring and control of fluid flow, reducing waste and energy consumption
- Durable materials and long MTTF (>200 years) reduce replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FTS-I060F14A Calorimetric Flow Sensor is available for immediate purchase. Ideal for industrial and process control applications requiring precise flow and temperature measurement in water and oil-based liquids.
