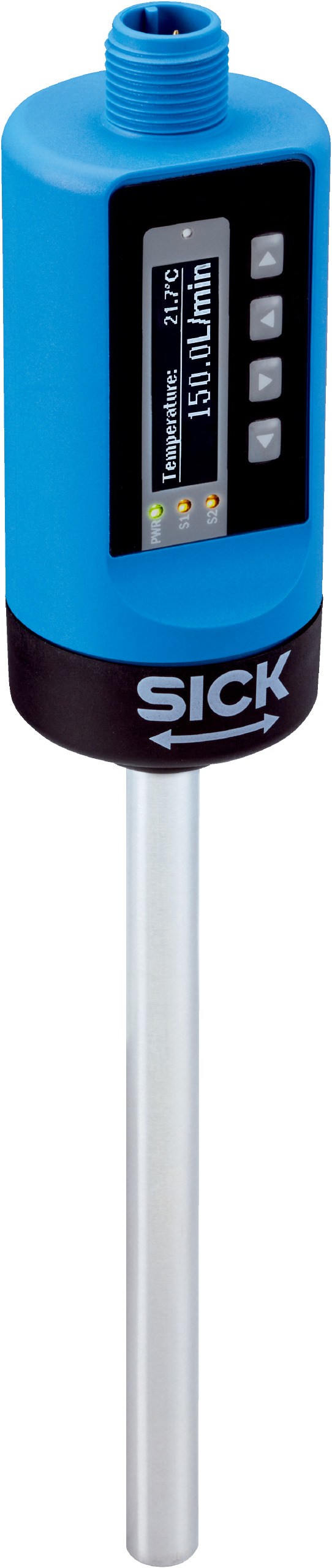

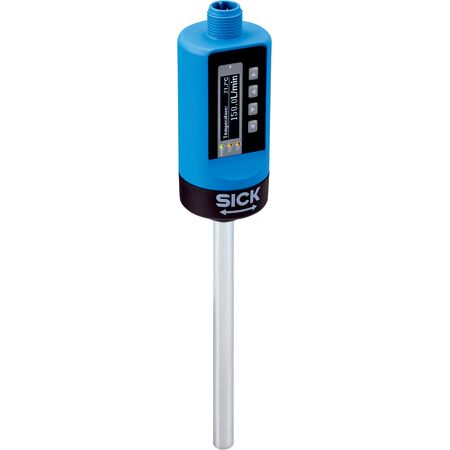

Calorimetric Flow Sensor FTS-I060F14B | IO-Link Communication | IP67 Rated | by SICK
The Calorimetric Flow Sensor FTS-I060F14B is designed for precise measurement of water and oil-based liquids, featuring a measuring range of 3 cm/s to 600 cm/s. With an IP67 rating and integrated temperature measurement accuracy of ±1 °C, this sensor is perfect for industrial process monitoring and automation applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Medium: Water and oil-based liquids
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on medium
- Process temperature: -40 °C to +150 °C
- Process pressure: -1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Display: OLED with 3 status LEDs
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: <2 W (no load), <8 W (max load)
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signals: 2 push-pull digital outputs configurable for flow and temperature
- Enclosure rating: IP67
- Wetted parts: Stainless steel 1.4404 (Ra ≤ 0.8 µm)
- Probe diameter: 8 mm
- Probe length: 60 mm
- Minimum immersion length: 12 mm
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on medium
- Process temperature range from -40 °C to +150 °C
- Process pressure tolerance up to 100 bar depending on connector
- Integrated temperature measurement with ±1 °C accuracy
- OLED display with 3 status LEDs for easy monitoring
- Communication via IO-Link V1.1 with 230.4 kbit/s data rate
- Compact probe design with 8 mm diameter and 60 mm length
- IP67 rated enclosure for robust protection
- Stainless steel wetted parts for durability
Professional Installation Requirements
- Installation requires a qualified technician to ensure proper adapter use and secure connection to the process pipe. Calibration and configuration via IO-Link recommended.
Applications
- Measurement of flow in water and oil-based liquids in pipes with diameter ≥ 25 mm
- Industrial process monitoring requiring precise flow and temperature measurement
- Applications needing IO-Link communication interface for automation integration
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with relevant EMC standards EN 61326-1 and EN 61326-2-3
Environmental Benefits
- Enables precise flow monitoring to optimize fluid usage and reduce waste
- Durable stainless steel construction extends product life and reduces replacement frequency
- Low power consumption (<8 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FTS-I060F14B flow sensor is available for immediate purchase. Ideal for industrial and process automation applications requiring precise liquid flow measurement.
