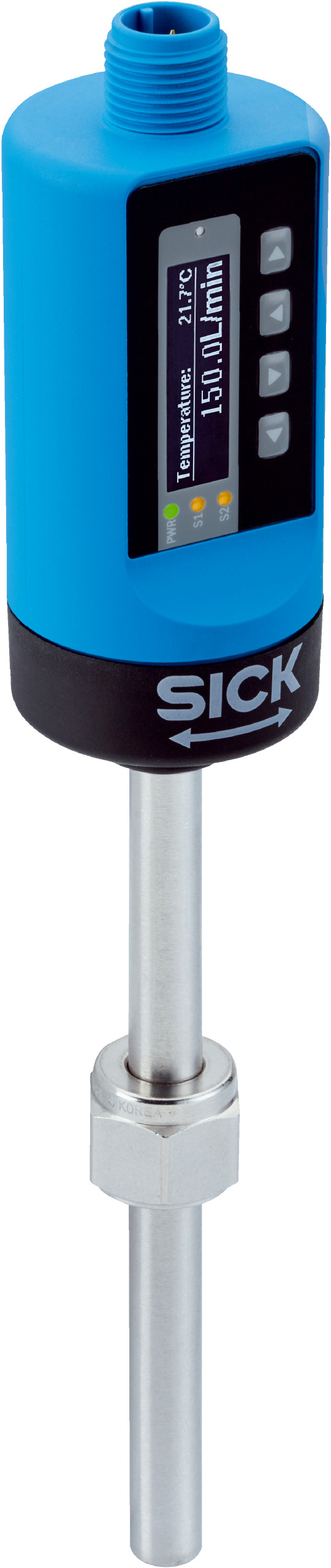

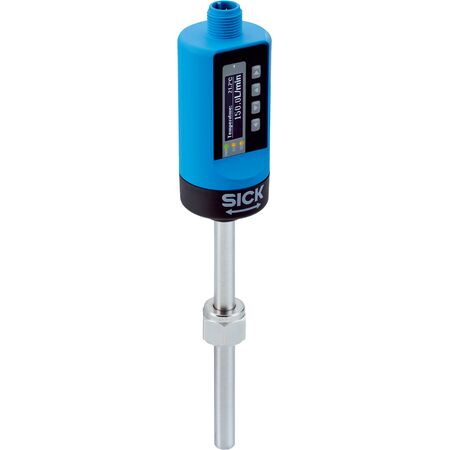

Calorimetric Flow Sensor FTS-I061F14B | Water & Oil Measurement | IO-Link Communication | IP67 Rated | by SICK
The Calorimetric Flow Sensor FTS-I061F14B is designed for precise measurement of water and oil-based liquids, featuring a measuring range of 3 cm/s to 600 cm/s. With an IO-Link communication interface and an OLED display, this sensor is perfect for industrial process monitoring and ensures high accuracy with a temperature measurement precision of ±1 °C. Built for durability, it boasts an IP67 rating, making it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Medium: Water and oil-based liquids
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on media
- Process temperature: –40 °C to +150 °C
- Process pressure: –1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Display: OLED with 3 status LEDs
- Power supply: 9 V DC to 30 V DC
- Power consumption: < 2 W (no load), < 8 W (max load)
- Protection class: III
- Connection: M12 round connector, 4-pin
- Output signals: 2 push-pull digital outputs configurable for flow, temperature, analog or pulse
- Enclosure rating: IP67
- Wetted parts: Stainless steel 1.4404 (Ra ≤ 0.8 µm)
- Housing material: VISTAL (PA66+PA6I GF50)
- MTTF: > 200 years
- Dimensions (H x L x W): 20mm x 60mm x 20mm
- Weight: 0.5 kg
Key Features
- Calorimetric measurement process
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on media
- Process temperature range from –40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Integrated temperature measurement with ±1 °C accuracy
- OLED display with 3 status LEDs
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Low power consumption under 8 W
- Protection class III and IP67 rated enclosure
- Stainless steel wetted parts and durable VISTAL housing
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Measurement of flow in water and oil-based liquids
- Industrial process monitoring
- Pipe diameters ≥ 25 mm
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise flow measurement to optimize fluid usage and reduce waste
- Durable materials and long service life reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FTS-I061F14B flow sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise liquid flow measurement.
