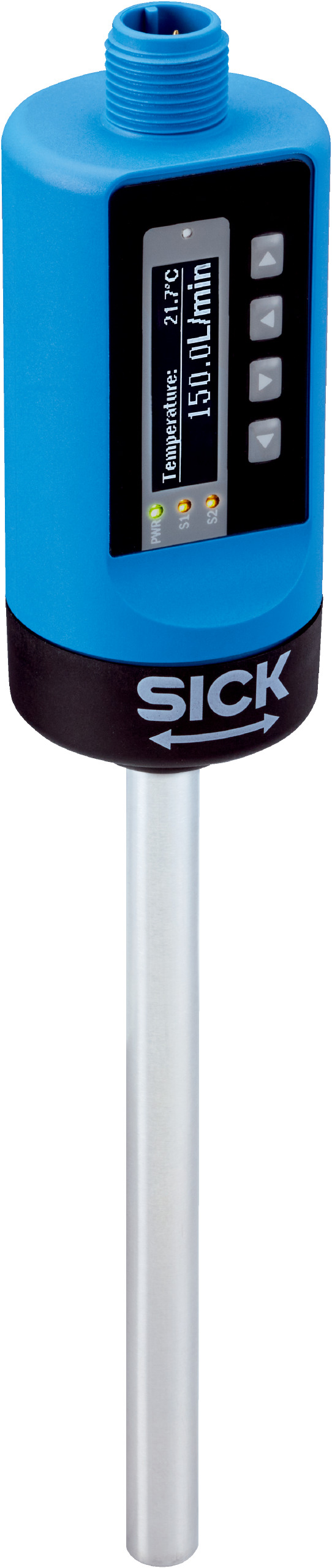

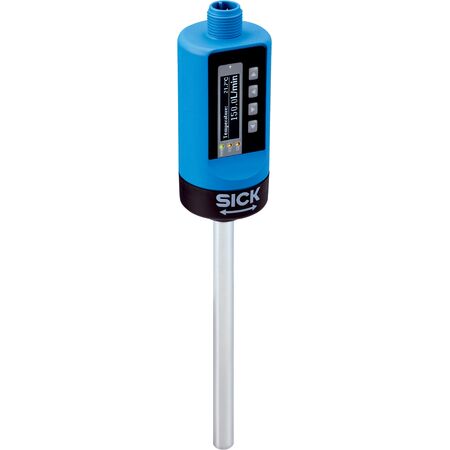

Calorimetric Flow Sensor FTS-I100F14A | Accurate Flow Detection | IO-Link Communication | IP67 Rated | by SICK
The FTS-I100F14A Calorimetric Flow Sensor is designed for precise flow measurement in water and oil-based liquids, featuring a measuring range from 3 cm/s to 600 cm/s. With robust IP67 housing and integrated temperature measurement, it's perfect for industrial process monitoring and control, ensuring high accuracy and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 20mm x 100mm x 20mm
- Weight: 0.1 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on media
- Process temperature range from -40 °C to +150 °C
- Process pressure tolerance up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s data rate
- Integrated temperature measurement with ±1 °C accuracy
- OLED display with 3 status LEDs for easy monitoring
- High measurement accuracy of ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Fast response time under 2.5 seconds
- Robust IP67 rated housing with stainless steel wetted parts
- Low power consumption under 8 W at maximum load
Professional Installation Requirements
- Installation requires professional handling with appropriate adapters for process connection; recommended to be performed by qualified technicians familiar with IO-Link communication and industrial sensor integration.
Applications
- Measurement of flow velocity in water and oil-based liquids
- Industrial process monitoring requiring precise flow and temperature measurement
- Use in pipes with diameters ≥ 25 mm
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise monitoring and control of fluid flow, reducing waste and energy consumption
- Durable stainless steel construction extends product life and reduces replacement frequency
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FTS-I100F14A flow sensor is available for immediate purchase, ideal for industrial process monitoring and control applications.
