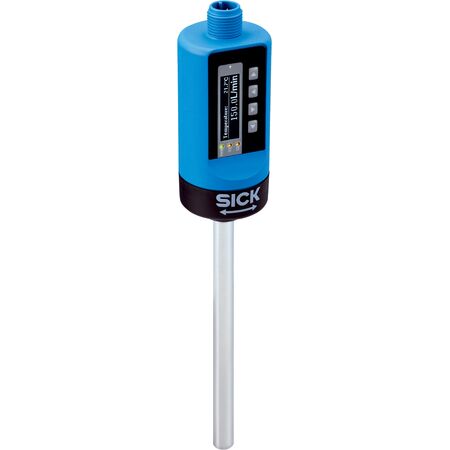

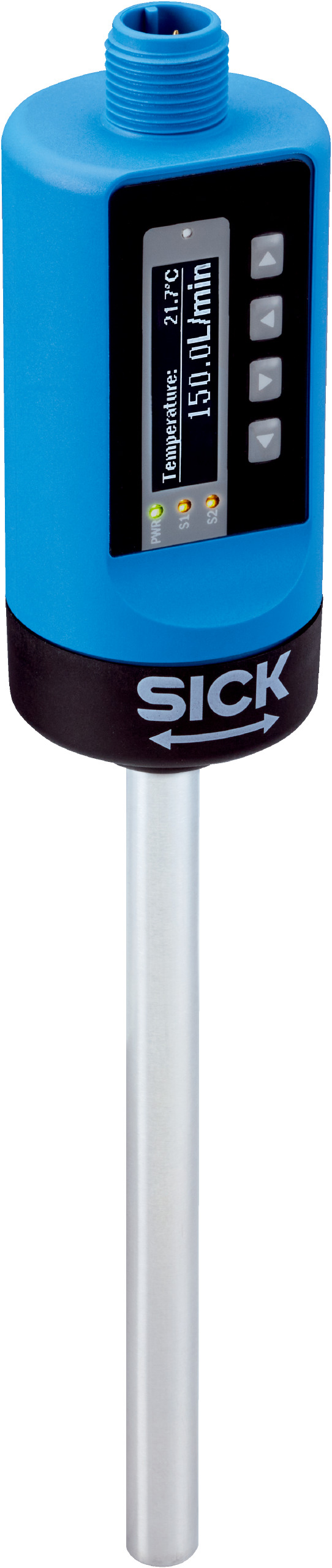

Calorimetric Flow Sensor FTS-I100F14B | Accurate Flow Detection | IP67 Rated | by SICK
The FTS-I100F14B Calorimetric Flow Sensor is designed for precise flow measurement in water and oil-based liquids, featuring a measuring range from 3 cm/s to 600 cm/s. With an integrated OLED display and robust stainless steel construction, it’s perfect for industrial process monitoring and control, ensuring high measurement accuracy and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 100mm x 100mm x 8mm
- Weight: 0.1 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on media
- Process temperature range from -40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Integrated temperature measurement with OLED display and 3 status LEDs
- High measurement accuracy with ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Robust stainless steel wetted parts and IP67 enclosure rating
- Low power consumption under 8 W at maximum load
Professional Installation Requirements
- Professional installation by qualified personnel is recommended, including use of appropriate adapters for process connection.
Applications
- Measurement of flow in water and oil-based liquids in pipes with diameter ≥ 25 mm
- Industrial process monitoring and control
- Temperature measurement in fluid systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable stainless steel construction extends product life and reduces waste
- Accurate flow measurement optimizes fluid usage and reduces resource waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FTS-I100F14B flow sensor is available for immediate purchase, ideal for industrial fluid flow and temperature measurement applications.
