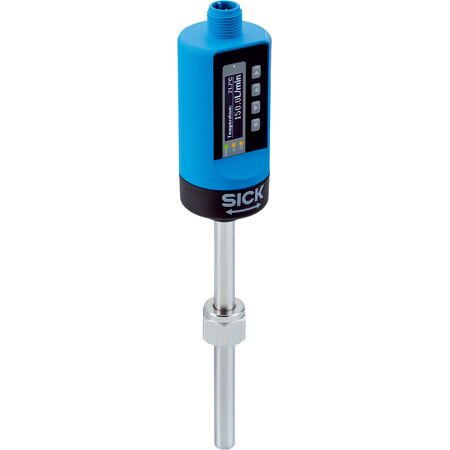

Calorimetric Flow Sensor FTS-I101F14A | Accurate Flow Detection | IP67 Rated | by SICK
The FTS-I101F14A Calorimetric Flow Sensor is designed for precise flow measurement in water and oil-based liquids, making it ideal for industrial piping systems. With a measuring range of 3 cm/s to 600 cm/s and a robust IP67 rated housing, this sensor ensures high accuracy and reliability in process monitoring across various industries, including chemical and food manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 120mm x 20mm x 20mm
- Weight: 0.5 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on media
- Process temperature range from -40 °C to +150 °C
- Process pressure up to 100 bar depending on connector type
- Communication via IO-Link V1.1 with 230.4 kbit/s data rate
- Integrated temperature measurement with ±1 °C accuracy
- OLED display with 3 status LEDs for easy monitoring
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Fast response time under 2.5 seconds
- Robust IP67 rated housing with stainless steel wetted parts
- M12 round connector, 4-pin for easy installation
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with process systems and compliance with safety standards.
Applications
- Measurement of flow in water and oil-based liquids in industrial piping systems
- Suitable for process monitoring in chemical, food, and manufacturing industries
- Flow and temperature measurement in pipes with diameter ≥ 25 mm
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables precise flow monitoring to optimize resource usage and reduce waste
- Durable stainless steel construction extends product life and reduces replacement frequency
- Low power consumption under 8 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK FTS-I101F14A flow sensor is available for immediate purchase, ideal for industrial process monitoring and control applications.
