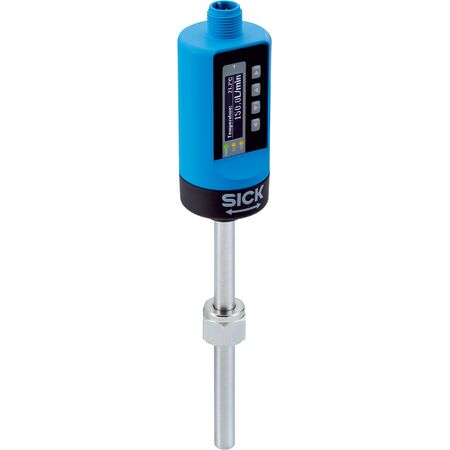

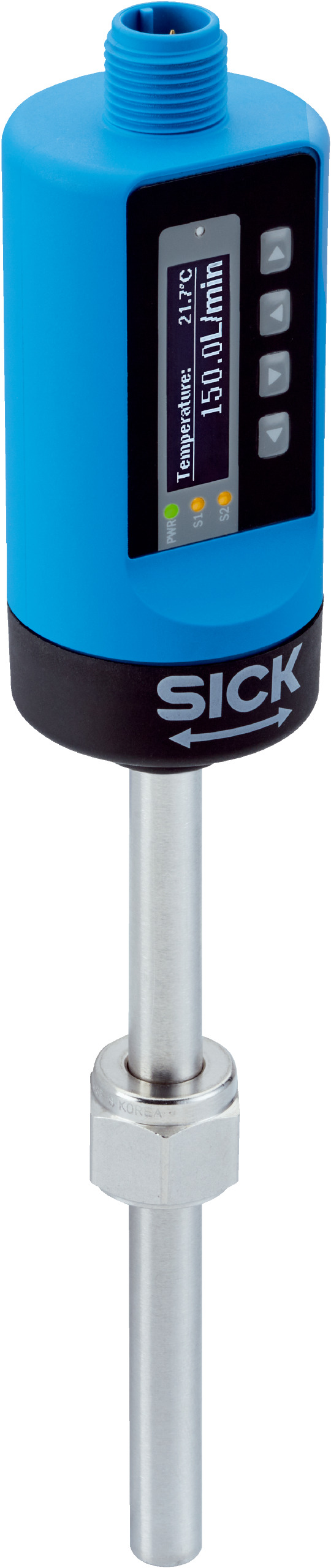

Calorimetric Flow Sensor FTS-I101F14B | IO-Link Communication | IP67 Protection | by SICK
The Calorimetric Flow Sensor FTS-I101F14B is designed for precise flow measurement in water and oil-based liquids, featuring a measuring range of 3 cm/s to 600 cm/s. With IO-Link communication and an IP67 protection class, it's perfect for industrial process monitoring and control, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Medium: Water and oil-based liquids
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on medium
- Process temperature: -40 °C to +150 °C
- Process pressure: -1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Display: OLED with 3 status LEDs
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: < 2 W at 24 V DC (no load), < 8 W max load
- Protection class: IP67
- Connection type: M12 round connector, 4-pin
- Output signals: 2 push-pull digital outputs configurable for flow, temperature, analog or pulse output
- Measurement accuracy: ±7% of measured value + 2% of range end value
- Repeatability: < 1 cm/s
- Response time: < 2.5 s
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Wetted parts: Stainless steel 1.4404 (Ra ≤ 0.8 µm)
- Housing material: VISTAL (PA66+PA6I GF50)
- Dimensions (H x L x W): 120mm x 20mm x 20mm
- Weight: 0.5 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on medium
- Process temperature range from -40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Integrated temperature measurement with ±1 °C accuracy
- OLED display with 3 status LEDs for easy monitoring
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Protection class IP67 for harsh environments
- Stainless steel wetted parts and durable VISTAL housing
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial flow measurement systems to ensure proper setup and calibration.
Applications
- Measurement of flow in water and oil-based liquids in pipes with diameter ≥ 25 mm
- Industrial process monitoring and control
- Temperature measurement in fluid systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient monitoring and control of fluid flow, reducing waste and energy consumption
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK FTS-I101F14B flow sensor is available for immediate purchase, ideal for industrial fluid flow measurement and process control applications.
