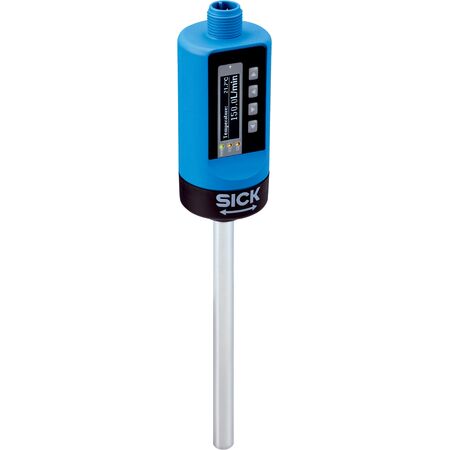

Calorimetric Flow Sensor FTS-I200F14A | Accurate Flow Detection | IP67 Rated | OLED Display | by SICK
The FTS-I200F14A Calorimetric Flow Sensor is designed for precise flow measurement in water and oil-based liquids, featuring a measuring range from 3 cm/s to 600 cm/s. With an integrated temperature measurement and an OLED display for easy monitoring, this sensor is perfect for industrial process monitoring and applications requiring robust performance and IO-Link communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 8mm x 200mm x 8mm
- Weight: 0.1 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on medium
- Process temperature range from -40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Integrated temperature measurement with ±1 °C accuracy
- OLED display with 3 status LEDs for easy monitoring
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Compact probe design with 8 mm diameter and 200 mm length
- IP67 rated enclosure for protection against dust and water
Professional Installation Requirements
- Installation requires a qualified technician familiar with flow sensor integration and IO-Link communication setup.
Applications
- Measurement of flow velocity in water and oil-based liquids in pipes with diameter ≥ 25 mm
- Industrial process monitoring requiring precise flow and temperature measurement
- Applications needing robust sensors with IO-Link communication interface
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption (<2 W typical) reduces energy usage
- Durable stainless steel wetted parts ensure long service life and reduce waste
- Non-invasive measurement reduces need for process interruption and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FTS-I200F14A flow sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise liquid flow measurement.
