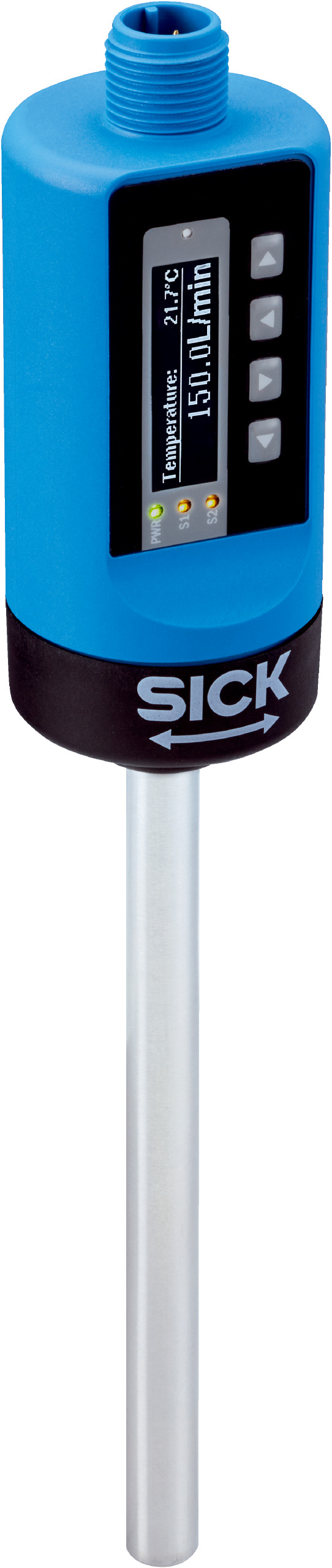

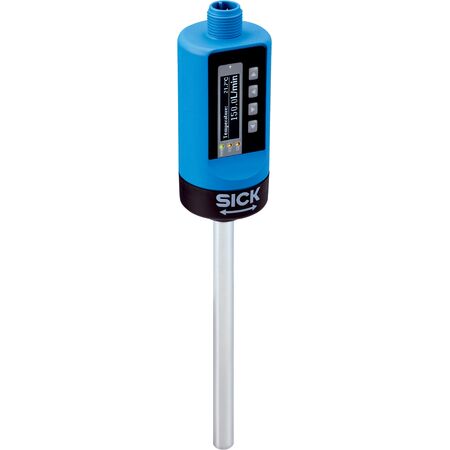

Calorimetric Flow Sensor FTS-I200F14B | Water & Oil-Based Liquids | IO-Link Communication | IP67 Rated | by SICK
The FTS-I200F14B calorimetric flow sensor is designed for precise measurement of water and oil-based liquids in pipes with a diameter of 25 mm or more. With a measuring range of 3 cm/s to 600 cm/s and a robust IP67 rated housing, it’s perfect for industrial process monitoring and control. Featuring IO-Link communication and integrated temperature measurement with ±1 °C accuracy, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric
- Medium: Water and oil-based liquids
- Pipe diameter: ≥ 25 mm
- Measuring range: 3 cm/s to 600 cm/s depending on medium
- Process temperature: -40 °C to +150 °C
- Process pressure: -1 bar to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- Temperature measurement accuracy: ±1 °C
- Display: OLED with 3 status LEDs
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: < 2 W at 24 V DC (no load), < 8 W max load
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signals: 2 push-pull digital outputs configurable for flow and temperature
- Enclosure rating: IP67
- Probe diameter: 8 mm
- Probe length: 200 mm
- Repeatability: < 1 cm/s
- Response time: < 2.5 s
- Dimensions (H x L x W): 20mm x 200mm x 20mm
- Weight: 0.5 kg
Key Features
- Calorimetric measurement process for accurate flow detection
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s up to 600 cm/s depending on medium
- Process temperature range from -40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication via IO-Link V1.1 with 230.4 kbit/s
- Integrated temperature measurement with ±1 °C accuracy
- OLED display with 3 status LEDs for easy monitoring
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Fast response time under 2.5 seconds
- Robust IP67 rated housing with stainless steel wetted parts
- M12 round connector, 4-pin for connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial flow measurement systems to ensure proper setup and calibration.
Applications
- Measurement of flow in water and oil-based liquids in pipes with diameter ≥ 25 mm
- Industrial process monitoring and control
- Temperature measurement in fluid flow systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise monitoring and control of fluid flow, reducing waste and energy consumption
- Durable stainless steel construction ensures long service life and reduces replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FTS-I200F14B flow sensor is available for immediate purchase, ideal for industrial fluid flow measurement and process control applications.
