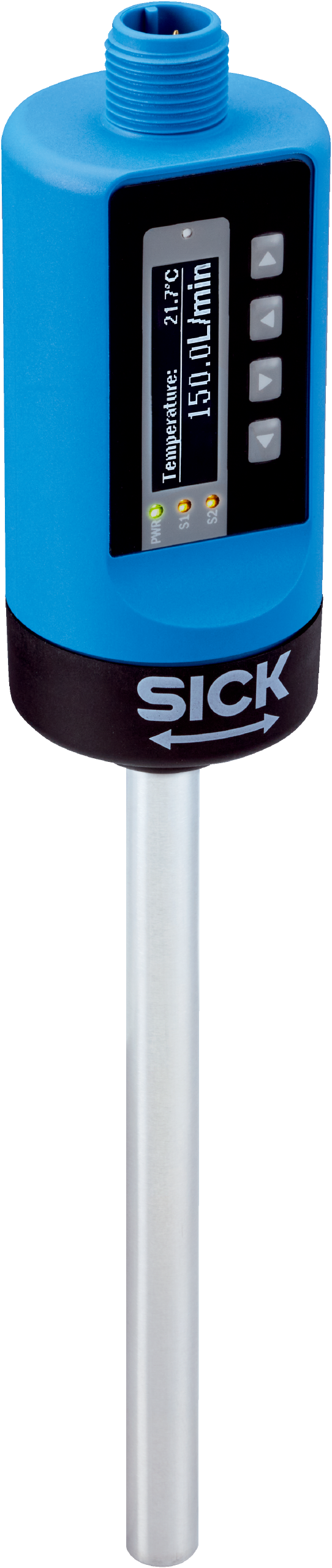

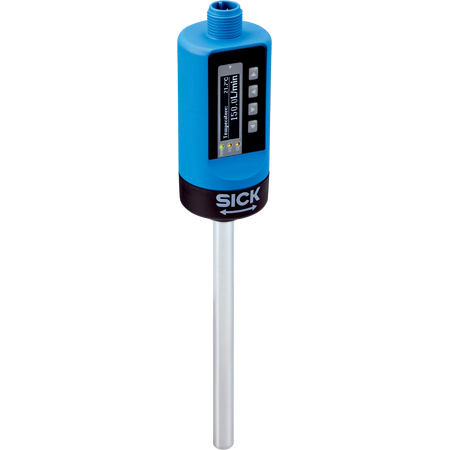

Calorimetric Flow Sensor FTS-I200F14B | Water & Oil Measurement | IO-Link Communication | IP67 Rated | by SICK

BRAND: SICK
SKU: 1114231
$1,152.50 List price: $1,448.60
+ −
30 Days Return Electricians Unlock Trade Access
The FTS-I200F14B calorimetric flow sensor is designed for precise measurement of water and oil-based liquids, featuring a measuring range from 3 cm/s to 600 cm/s. With integrated temperature measurement and IO-Link communication, it's perfect for industrial process monitoring and ensures high accuracy and repeatability. Built to withstand harsh environments with an IP67 rating, this sensor is ideal for optimizing resource usage in various applications.

Alternatively Known As: Flow sensor, liquid flow meter, calorimetric flow sensor, IO-Link flow transmitter

Technical Specifications
  • Dimensions (H x L x W): 20mm x 200mm x 20mm
  • Weight: 0.5 kg
Key Features
  • Calorimetric measurement process
  • Suitable for water and oil-based liquids
  • Measuring range from 3 cm/s to 600 cm/s depending on medium
  • Process temperature range from –40 °C to +150 °C
  • Process pressure up to 100 bar depending on connector
  • Communication via IO-Link V1.1, COM3 (230.4 kbit/s)
  • Integrated temperature measurement with ±1 °C accuracy
  • OLED display with 3 status LEDs
  • High measurement accuracy ±7% of measured value plus 2% of range end value
  • Repeatability < 1 cm/s
  • Response time < 2.5 s
  • Supply voltage 9 V DC to 30 V DC
  • Power consumption < 8 W at maximum load
  • Protection class III and IP67 enclosure rating
  • Stainless steel wetted parts and robust housing material
Professional Installation Requirements
  • Professional installation recommended with appropriate adapters for process connection.
Applications
  • Measurement of flow in water and oil-based liquids
  • Industrial process monitoring
  • Pipe diameters ≥ 25 mm
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Enables precise flow measurement to optimize resource usage and reduce waste
  • Durable construction reduces need for frequent replacements
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for details.

Available Now

The SICK FTS-I200F14B flow sensor is available for immediate purchase, ideal for industrial and process flow measurement applications.
