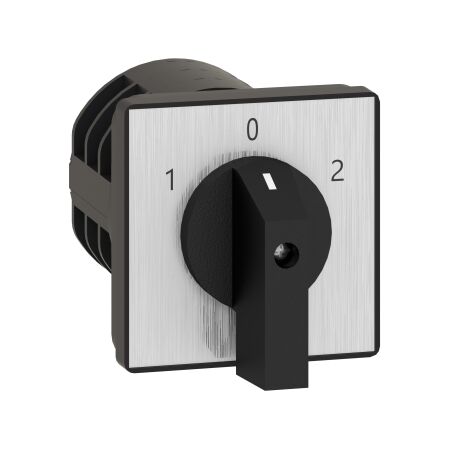

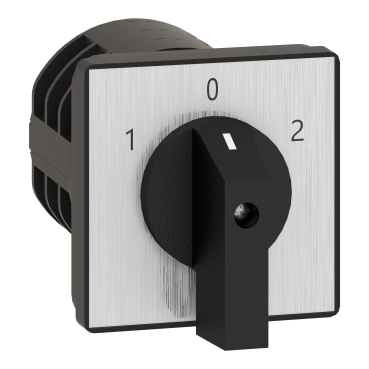

Cam Changeover Switch | 4 Poles | 32A Current Rating | IP65 Rated | @Pack of 1 | by Clipsal
The Cam Changeover Switch is a versatile 4-pole switch designed for reliable operation in industrial and commercial applications. With a 32A current rating and IP65 ingress protection, it ensures safe and efficient switching for machinery control panels and generator systems. Built for durability, this panel mount switch is ideal for licensed electricians looking to enhance electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cam Changeover Switch | 4 Poles | 32A Current Rating | IP65 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHK30H004UP
Alternatively Known As: 4 Pole Changeover Switch, 32A Cam Switch, Generator Changeover Switch, Rotary Changeover Switch, Clipsal SCHK30H004UP
Technical Specifications
- Number of Poles: 4
- Rated Current: 32A
- Switch Type: Cam changeover
- Mounting: Panel mount
- Voltage Rating: 690V AC max
- Mechanical Endurance: 10,000 operations
- Terminal Capacity: Up to 10mm²
- Ingress Protection: IP65 (front panel)
- Dimensions (H x L x W): 70mm x 90mm x 70mm
- Weight: 0.45 kg
Key Features
- 4 pole cam changeover switch for versatile switching applications
- 32A current rating suitable for medium-duty loads
- Robust construction for reliable operation in demanding environments
- Clear ON/OFF/Changeover positions for safe operation
- Panel mount design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial machinery control panels
- Switchboards and distribution boards
- Generator changeover systems
- Commercial and industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 60947.3 for switchgear and controlgear
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste.
- Reliable switching minimizes downtime and energy loss in critical systems.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Cam Changeover Switch 4 Poles 32A SCHK30H004UP is available for immediate purchase. Ideal for industrial and commercial electrical switching applications.
