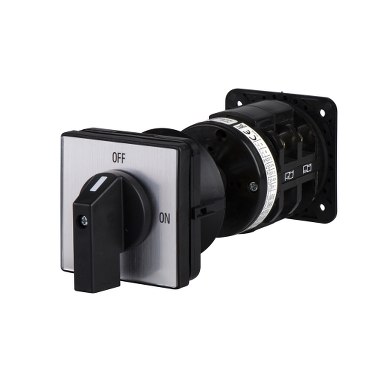

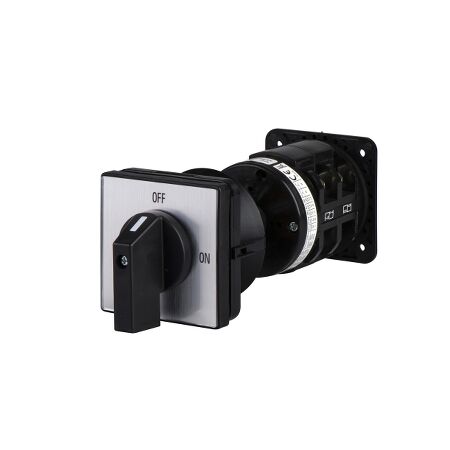

Cam Reversing STARDELTA Switch | 690V AC | 32A Rated Current | Robust Construction | @Pack of 1 | by Clipsal
The Cam Reversing STARDELTA Switch is designed for reliable star-delta motor starting and reversing control, making it ideal for industrial motor control panels and machinery. With a robust construction and a rated voltage of 690V AC, this switch ensures safe operation in demanding environments, providing over 1,000,000 mechanical operations for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cam Reversing STARDELTA Switch | 690V AC | 32A Rated Current | Robust Construction | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHK50K006YP
Alternatively Known As: Star Delta Motor Starter Switch, Cam Reversing Switch, Star Delta Changeover Switch, Motor Reversing Switch
Technical Specifications
- Type: Cam Reversing STARDELTA Switch
- Model: SCHK50K006YP
- Switching Function: Star-Delta with reversing capability
- Rated Voltage: 690V AC
- Rated Current: 32A
- Mounting: Panel mount
- Contact Configuration: 6-pole
- Mechanical Life: >1,000,000 operations
- Operating Temperature: -25°C to +55°C
- Dimensions (H x L x W): 120mm x 70mm x 70mm
- Weight: 0.6 kg
Key Features
- Cam-operated switch for reliable star-delta motor starting
- Reversing function for flexible motor control
- Robust construction for industrial environments
- Clear position indication for safe operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control panels
- Machinery requiring star-delta starting
- Pumps, compressors, and conveyor systems
- Switchboards in manufacturing facilities
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Enables energy-efficient motor starting, reducing electrical stress and prolonging equipment life.
- Durable design minimizes replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Cam Reversing STARDELTA Switch SCHK50K006YP is available for immediate purchase. Ideal for industrial motor control and machinery requiring reliable star-delta starting and reversing.
