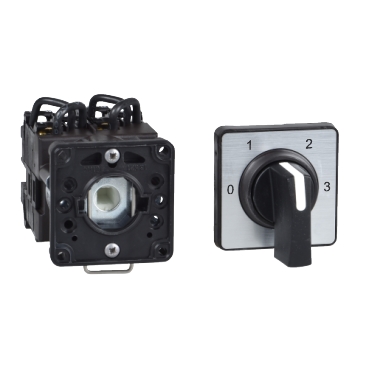

Cam Stepping Switch 2Pole 45° | Robust & Reliable Operation | Panel Mount | @Pack of 1 | by Clipsal
The Cam Stepping Switch 2Pole 45° is designed for industrial control panels and switchboards, featuring a robust and reliable operation with a 45° switching angle. Built for commercial applications, this switch ensures durability and compliance with AS/NZS 60947 standards, making it ideal for machinery control and electrical distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cam Stepping Switch 2Pole 45° | Robust & Reliable Operation | Panel Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHK10F013QCH
Alternatively Known As: 2 Pole Cam Switch, Stepping Switch, Rotary Cam Switch, Clipsal Cam Switch, SCHK10F013QCH
Technical Specifications
- Number of Poles: 2
- Switching Angle: 45°
- Mounting: Panel mount
- Rated Voltage: 690V AC
- Rated Current: 10A
- Contact Material: Silver alloy
- Mechanical Life: >1,000,000 operations
- Operating Temperature: -25°C to +55°C
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.25 kg
Key Features
- 2-pole cam stepping switch
- 45° switching angle
- Robust and reliable operation
- Suitable for industrial and commercial applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Industrial control panels
- Switchboards
- Machinery control
- Electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Reliable operation minimizes downtime and energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Cam Stepping Switch 2 Pole 45° SCHK10F013QCH is available for immediate purchase. Ideal for industrial control panels, switchboards, and machinery control applications.
