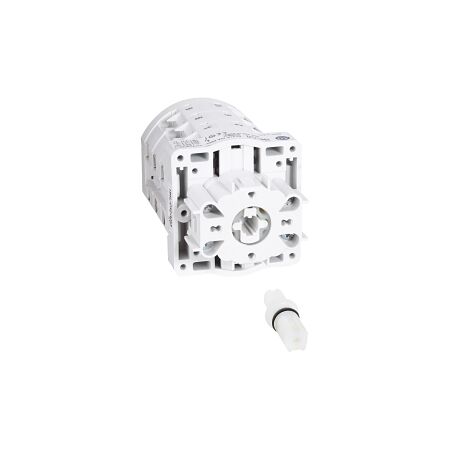

Cam Switch 1 Pole 12A | Panel Mount | 90° Ammeter | IP20 by NHP
Cam switch with 1 pole and 12A rated current—ideal for control panels and machinery. Built for industrial use, with easy panel mount installation and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 194L Cam Switch 1Pole 12A Panel Mount 90 Degree Ammeter 0 1 2 3
Brand: NHP
SKU: 194LE128751
Alternatively Known As: Cam Switch, 1 Pole Switch, Panel Mount Switch
Technical Specifications
- Rated permanent current: 12 A
- Rated operation current at AC 15 (230V): 5 A
- Rated operation current at AC 15 (400V): 3 A
- Rated operation current at AC 22A (690V): 12 A
- Rated operation current at AC 22A (220-500V): 12 A
- Rated operation current at AC 21A (690V): 12 A
- Rated operation current at AC 1 (690V): 12 A
- Thermal current (enclosed): 12 A
- Thermal current (open): 16 A
- Number of switch positions: 4
- Mechanical life: 1,000,000 cycles
- Operating temperature: -25 to 60 °C
- Material housing: Plastic
- Electrical connection: Screw connection
- Dimensions (H x L x W): 42mm x 64mm x 42mm
- Weight: 0.5 kg
Key Features
- 1 pole design with a rated permanent current of 12A.
- Front mounting method for easy installation.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, and equipment
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 194L Cam Switch is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
