Cam Switch 1 Pole Changeover | 12A 690V | DIN Rail Mount | IP20 by NHP
Cam switch with 1 pole changeover and off position, rated for 12A at 690V—ideal for industrial machinery control and commercial electrical systems. Built for durability with DIN rail mount and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

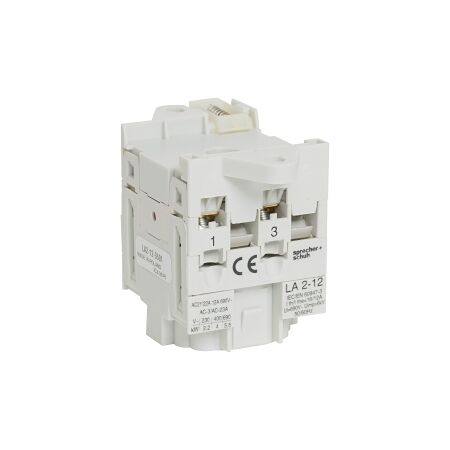

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Changeover with Off 12A Base Mount
Brand: NHP
SKU: LA2123501
Alternatively Known As: L2 Cam Switch, Changeover Switch, Off-load Switch
Technical Specifications
- Rated operation current at AC 15 (230V): 5A
- Rated operation current at AC 15 (400V): 3A
- Rated operation current at AC 22A (690V): 12A
- Rated operation current at AC 22A (220-500V): 12A
- Rated operation current at AC 21A (690V): 12A
- Rated operation current at AC 1 (690V): 12A
- Thermal current (enclosed): 12A
- Thermal current (open): 16A
- Type of electrical connection: Screw connection
- Mounting method: DIN rail
- Material housing: Plastic
- Wire conductor size (rigid cable): 1-2.5 mm²
- Wire conductor size (flex cable): 1-2.5 mm²
- Degree of protection: IP20
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 59mm x 58mm x 58mm
- Weight: 0.5 kg
Key Features
- 1 pole changeover switch with off position.
- Rated for 12A at 690V AC.
- Mechanical life of 1,000,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Changeover with Off 12A Base Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
