Cam Switch 1 Pole Changeover | 12A Rated | Panel Mount | IP20 by NHP
Cam switch with 1 pole changeover and 12A rated current—ideal for industrial and commercial panel mounting. Built for durability, with IP20 protection and a mechanical life of 1,000,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

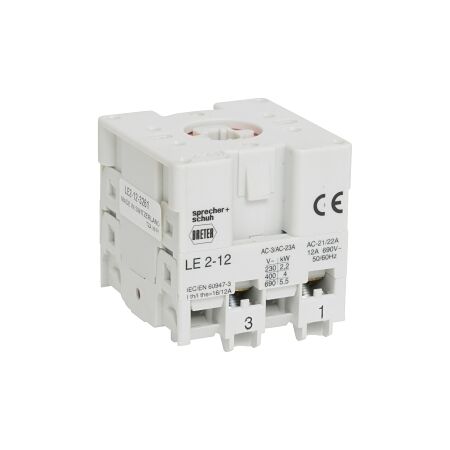

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Changeover SR 12A Panel Mount
Brand: NHP
SKU: LE2123261
Alternatively Known As: L2 Cam Switch, Changeover Switch, Panel Mount Switch
Technical Specifications
- Rated operation current at AC 15 230V: 5A
- Rated operation current at AC 15 400V: 3A
- Rated operation current at AC 22A 690V: 12A
- Rated operation current at AC 22A 220-500V: 12A
- Rated operation current at AC 21A 690V: 12A
- Rated operation current at AC 1 690V: 12A
- Ithe thermal current enclosed: 12A
- Ith thermal current open: 16A
- Type of electrical connection of main circuit: Screw connection
- Mounting method: Front mounting
- Material housing: Plastic
- Wire conductor size rigid cable: 1-2.5 mm²
- Wire conductor size flex cable: 1-2.5 mm²
- Suitable for front mounting: Yes
- With zero off position: Yes
- Number of switch positions: 3
- With retraction in 0 position: Yes
- Operating temperature: -25-60 °C
- Dimensions (H x L x W): 42mm x 44mm x 42mm
- Weight: 0.5 kg
Key Features
- 1 pole changeover switch with a rated operation current of 12A.
- IP20 rated for front side protection.
- Mechanical life of 1,000,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Panel mounting applications
- Commercial: Equipment control and switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body is available now for immediate purchase. Ideal for panel mounting in industrial and commercial applications.
Non-Returnable & Non-Cancellable
