Cam Switch 1 Pole Off On | 12A Rated | Panel Mount | IP20 by NHP
Cam switch with 1 pole and 12A rated current—ideal for industrial control panels and commercial electrical installations. Built for reliability, with easy front mounting and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

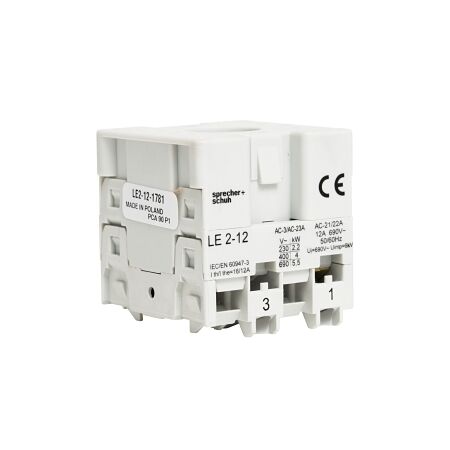

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Off On 12A Panel Mount
Brand: NHP
SKU: LE2121781
Alternatively Known As: Cam Switch, Off Load Switch, Panel Mount Switch
Technical Specifications
- Rated operation current at AC 15 (230V): 5A
- Rated operation current at AC 15 (400V): 3A
- Rated operation current at AC 22A (690V): 12A
- Rated operation current at AC 22A (220-500V): 12A
- Rated operation current at AC 21A (690V): 12A
- Rated operation current at AC 1 (690V): 12A
- Thermal current (enclosed): 12A
- Thermal current (open): 16A
- Type of electrical connection: Screw connection
- Mechanical life: 1,000,000 cycles
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 44mm x 42mm
- Weight: 0.5 kg
Key Features
- 1 pole design with a rated operation current of 12A.
- Front mounting for easy installation.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and equipment
- Commercial: Electrical installations requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Off On 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
