Cam Switch 2-Pole 16A | Panel Mount | 90° Off-On | IP20 Rated by NHP
Cam switch with 2-pole design and 16A current—ideal for industrial control panels and machinery. Built for reliable switching, with easy panel mount installation and IP20 protection.
Sign in
Please login to continue to your account.

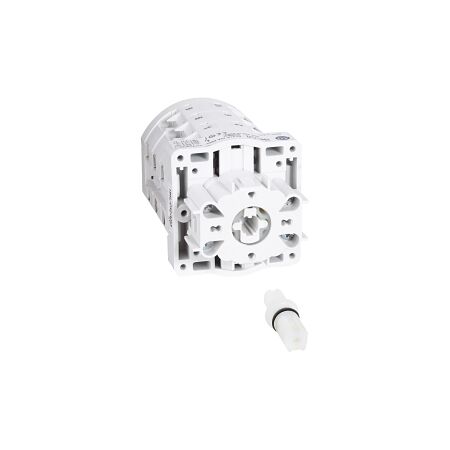

Product Name/Title: Allen-Bradley 194L Cam Switch 2Pole 16A Panel Mount 90 Degree Off On
Brand: NHP
SKU: 194LE161752
Alternatively Known As: Cam Switch, On/Off Switch, 2-Pole Switch
- Rated operation power at AC 3,400V: 3.7 kW
- Rated operation current at AC 15,230V: 6 A
- Rated operation current at AC 15,400V: 4 A
- Rated operation current at AC 22A, 690V: 16 A
- Rated operation current at AC 22A, 220-500V: 16 A
- Rated operation current at AC 21A, 690V: 16 A
- Rated operation current at AC 1,690V: 16 A
- Thermal current enclosed: 16 A
- Thermal current open: 20 A
- Type of electrical connection: Screw connection
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 44mm x 42mm
- Weight: 0.5 kg
- 2-pole design with a rated permanent current of 16A.
- Front mounting for easy installation.
- IP20 rated for protection against solid objects.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Control panels, machinery, and equipment
- Commercial: Electrical installations requiring reliable switching
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Allen-Bradley 194L Cam Switch 2Pole 16A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
