Cam Switch 2 Pole Changeover | 12A Rated | Front Mount | IP20 by NHP
Cam switch with 2 pole changeover and 12A rating—ideal for industrial and commercial electrical panels. Built for versatile switching, with front mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

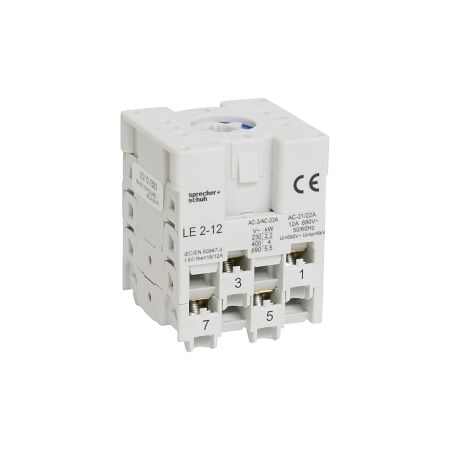

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Changeover 12A Panel Mount
Brand: NHP
SKU: LE2122502
Alternatively Known As: Cam Switch, Changeover Switch, Panel Mount Switch
Technical Specifications
- Number of Poles: 2
- Rated Operation Power at AC 3 400 V: 2.2 kW
- Rated Operation Current at AC 15 230 V: 5 A
- Rated Operation Current at AC 15 400 V: 3 A
- Rated Operation Current at AC 22A 690 V: 12 A
- Rated Operation Current at AC 22A 220-500 V: 12 A
- Rated Operation Current at AC 21A 690 V: 12 A
- Rated Operation Current at AC 1 690 V: 12 A
- Thermal Current Enclosed: 12 A
- Thermal Current Open: 16 A
- Type of Electrical Connection: Screw connection
- Mounting Method: Front mounting
- Material Housing: Plastic
- Wire Conductor Size (Rigid Cable): 1-2.5 mm²
- Wire Conductor Size (Flex Cable): 1-2.5 mm²
- Degree of Protection: IP20
- Mechanical Life Service Cycles: 1,000,000 cycles
- Number of Switch Positions: 2
- Operating Temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 54mm x 42mm
- Weight: 0.5 kg
Key Features
- 2 pole changeover design for versatile switching.
- Rated for 12A operation, suitable for various applications.
- Front mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Electrical panel applications
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Changeover 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
