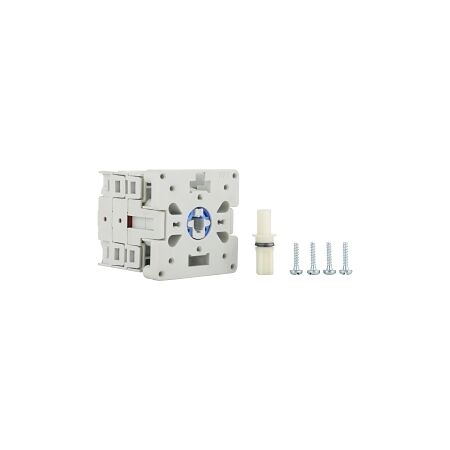

Cam Switch 2 Pole Changeover with Off | 20A Panel Mount | IP20 by NHP
Cam switch with 2 pole changeover and off position, rated for 20A operation—ideal for industrial machinery control and commercial electrical panels. Built for durability, with front mounting design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Changeover with Off 20A Panel Mount
Brand: NHP
SKU: LE2203502
Alternatively Known As: Cam Switch, Changeover Switch, Panel Mount Switch
Technical Specifications
- Rated operation power at AC 3, 400 V: 4.5 kW
- Rated operation current at AC 15, 230 V: 7 A
- Rated operation current at AC 15, 400 V: 5 A
- Rated operation current at AC 22A, 690 V: 20 A
- Rated operation current at AC 22A, 220-500 V: 20 A
- Rated operation current at AC 21A, 690 V: 20 A
- Rated operation current at AC 1, 690 V: 20 A
- Thermal current enclosed: 20 A
- Thermal current open: 25 A
- Type of electrical connection: Screw connection
- Degree of protection: IP20
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 55mm x 57mm x 55mm
- Weight: 0.5 kg
Key Features
- 2 pole changeover switch with off position.
- Rated for 20A operation.
- Front mounting design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Changeover with Off 20A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
