Cam Switch 3 Pole 16A | Panel Mount | 60° Changeover by NHP
Cam switch with 3-pole configuration and 16A rating—ideal for industrial control panels and commercial electrical systems. Built for durability, with front mounting for easy installation.
Sign in
Please login to continue to your account.

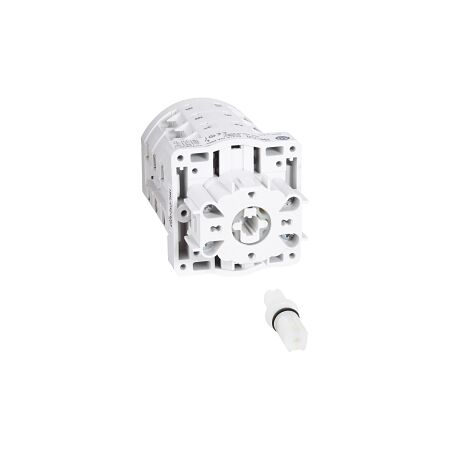

Product Name/Title: Allen-Bradley 194L Cam Switch 3Pole 16A Panel Mount 60 Degree Changeover 1 2
Brand: NHP
SKU: 194LE162503
Alternatively Known As: Cam Switch, 3 Pole Switch, Panel Mount Switch
- Number of Poles: 3
- Rated Permanent Current: 16 A
- Rated Operation Power at AC 3 400 V: 5.5 kW
- Rated Operation Current at AC 15 230 V: 6 A
- Rated Operation Current at AC 15 400 V: 4 A
- Rated Operation Current at AC 22A 690 V: 16 A
- Rated Operation Current at AC 22A 220-500 V: 16 A
- Rated Operation Current at AC 21A 690 V: 16 A
- Rated Operation Current at AC 1 690 V: 16 A
- Thermal Current Enclosed: 16 A
- Thermal Current Open: 20 A
- Type of Electrical Connection: Screw connection
- Mounting Method: Front mounting
- Material Housing: Plastic
- Wire Conductor Size (Rigid Cable): 1-2.5 mm²
- Wire Conductor Size (Flex Cable): 1-2.5 mm²
- Degree of Protection: IP20
- Number of Switch Positions: 2
- Operating Temperature: -25-60 °C
- Dimensions (H x L x W): 42mm x 64mm x 42mm
- Weight: 0.5 kg
- 3-pole configuration for versatile switching options.
- Rated for 16A with a mechanical life of 1,000,000 cycles.
- Front mounting design for easy installation.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Control panels, machinery, and equipment
- Commercial: Electrical distribution systems
- Complies with AS/NZS 3000 for electrical installation safety.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Allen-Bradley 194L Cam Switch 3Pole 16A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
