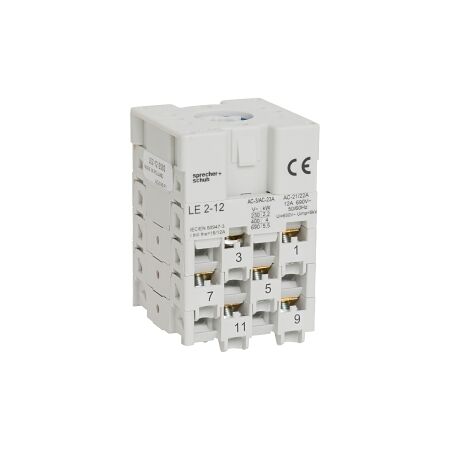

Cam Switch 3 Pole Changeover | 12A Panel Mount | IP20 Rated by NHP

BRAND: NHP
SKU: LE2122503
$181.40 List price: $240.80
+ −
30 Days Return Delivery Options
Cam switch with 3 pole changeover and 12A rating—ideal for industrial and commercial panel mounting. Built for versatile switching applications, with IP20 protection and durable design.

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Changeover 12A Panel Mount

Brand: NHP

SKU: LE2122503

Alternatively Known As: Cam Switch, Changeover Switch, Panel Mount Switch

Technical Specifications
  • Number of Poles: 3
  • Rated Operation Power at AC 3 400 V: 4 kW
  • Rated Operation Current at AC 15 230 V: 5 A
  • Rated Operation Current at AC 15 400 V: 3 A
  • Rated Operation Current at AC 22A 690 V: 12 A
  • Rated Operation Current at AC 22A 220-500 V: 12 A
  • Rated Operation Current at AC 21A 690 V: 12 A
  • Rated Operation Current at AC 1 690 V: 12 A
  • Thermal Current Enclosed: 12 A
  • Thermal Current Open: 16 A
  • Type of Electrical Connection: Screw connection
  • Mounting Method: Front mounting
  • Material Housing: Plastic
  • Wire Conductor Size (Rigid Cable): 1-2.5 mm²
  • Wire Conductor Size (Flex Cable): 1-2.5 mm²
  • Mechanical Life Service Cycles: 1,000,000 cycles
  • Number of Switch Positions: 2
  • Operating Temperature: -25 to 60 °C
  • Dimensions (H x L x W): 42mm x 64mm x 42mm
  • Weight: 0.5 kg
Key Features
  • 3 pole changeover design for versatile switching applications.
  • Rated for 12A operation, suitable for various electrical loads.
  • IP20 rated for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and power distribution
  • Commercial: Panel mounting for electrical systems
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Changeover 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

LE2122503-AU-Cam-Switch-Body-Datasheet.pdf (LE2122503-AU-Cam-Switch-Body-Datasheet.pdf, 364 Kb) [Download]
