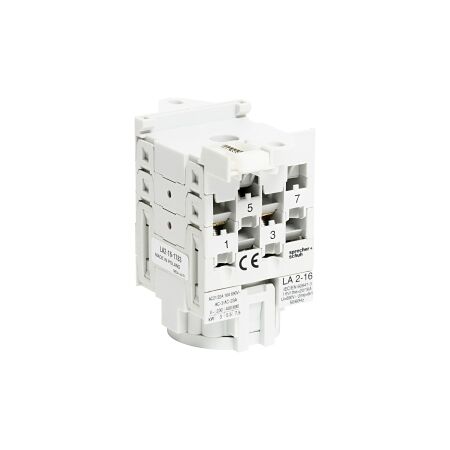

Cam Switch 3 Pole Off On | 16A Base Mount | IP20 Rated by NHP

BRAND: NHP
SKU: LA2161783
$160.30 List price: $212.90
+ −
30 Days Return Delivery Options
Cam switch with 3 pole design and 16A rating—ideal for industrial and commercial electrical applications. Built for versatile switching, with IP20 protection and durable construction.

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Off On 16A Base Mount

Brand: NHP

SKU: LA2161783

Alternatively Known As: Cam Switch, L2 Switch, 3 Pole Switch, On/Off Switch

Technical Specifications
  • Rated operation power at AC 3 400 V: 5.5 kW
  • Rated operation current at AC 15 230 V: 6 A
  • Rated operation current at AC 15 400 V: 4 A
  • Rated operation current at AC 22A 690 V: 16 A
  • Rated operation current at AC 22A 220-500 V: 16 A
  • Rated operation current at AC 21A 690 V: 16 A
  • Rated operation current at AC 1 690 V: 16 A
  • Thermal current enclosed: 16 A
  • Thermal current open: 20 A
  • Type of electrical connection of main circuit: Screw connection
  • Mounting method: DIN rail
  • Material housing: Plastic
  • Wire conductor size rigid cable: 1-2.5 mm²
  • Wire conductor size flex cable: 1-2.5 mm²
  • Mechanical life service cycles: 1,000,000 cycles
  • Number of switch positions: 2
  • Operating temperature: -25-60 °C
  • Dimensions (H x L x W): 59mm x 68mm x 68mm
  • Weight: 0.5 kg
Key Features
  • 3 pole design for versatile switching applications.
  • Rated for 16A operation, suitable for various electrical loads.
  • IP20 rated for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and automation
  • Commercial: Electrical distribution systems
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Off On 16A Base Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

Non-Returnable & Non-Cancellable

LA2161783-AU-Cam-Switch-Body-Datasheet.pdf (LA2161783-AU-Cam-Switch-Body-Datasheet.pdf, 330 Kb) [Download]
