Cam Switch 3 Pole Off On | 25A Panel Mount | IP20 Rated by NHP
Cam switch with 3 pole design and 25A rating—ideal for industrial and commercial electrical panels. Built for versatile switching applications, with IP20 protection and front mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

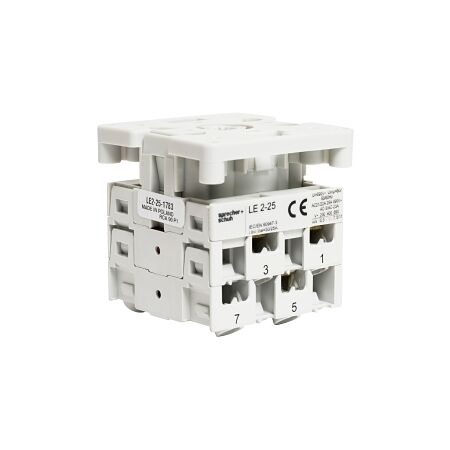

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Off On 25A Panel Mount
Brand: NHP
SKU: LE2251783
Alternatively Known As: Cam Switch, Off-load Switch, Panel Mount Switch
Technical Specifications
- Number of poles: 3
- Rated operation power at AC 3 400 V: 11 kW
- Rated operation current at AC 15 230 V: 8 A
- Rated operation current at AC 15 400 V: 6 A
- Rated operation current at AC 22A 690 V: 25 A
- Rated operation current at AC 22A 220-500 V: 25 A
- Rated operation current at AC 21A 690 V: 25 A
- Rated operation current at AC 1 690 V: 25 A
- Thermal current enclosed: 25 A
- Thermal current open: 30 A
- Type of electrical connection of main circuit: Screw connection
- Mounting method: Front mounting
- Material housing: Plastic
- Wire conductor size rigid cable: 1.5-6 mm²
- Wire conductor size flex cable: 1.5-4 mm²
- Degree of protection IP front side: IP20
- Suitable for front mounting: Yes
- Complete device in housing: No
- With zero off position: Yes
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 2
- With retraction in 0 position: No
- Operating temperature: -25-60 °C
- Dimensions (H x L x W): 55mm x 57mm x 55mm
- Weight: 0.5 kg
Key Features
- 3 pole design for versatile switching applications.
- Rated for 25A operation, suitable for various electrical loads.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Off On 25A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
