Cam Switch 3 Position with Off | 12A Rated | Panel Mount by NHP
Cam switch with 3 positions and off functionality, rated for 12A at 400V and 690V—ideal for industrial machinery control and commercial equipment switching. Built for durability, with front mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

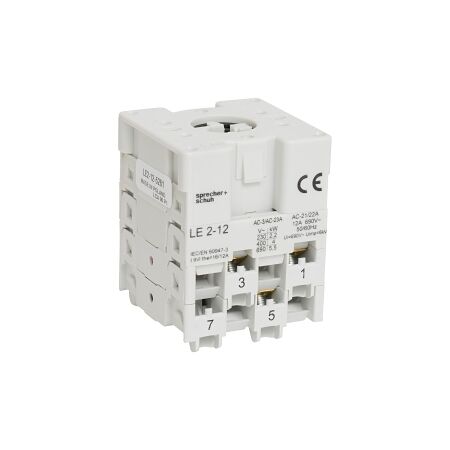

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 3 Position with Off 12A Panel Mount
Brand: NHP
SKU: LE2125261
Alternatively Known As: Cam Switch, L2 Switch, Panel Mount Switch
Technical Specifications
- Number of poles: 1
- Rated operation current (AC 15, 230V): 5 A
- Rated operation current (AC 15, 400V): 3 A
- Rated operation current (AC 22A, 690V): 12 A
- Rated operation current (AC 22A, 220-500V): 12 A
- Rated operation current (AC 21A, 690V): 12 A
- Rated operation current (AC 1, 690V): 12 A
- Thermal current (enclosed): 12 A
- Thermal current (open): 16 A
- Type of electrical connection: Screw connection
- Degree of protection: IP20
- Mechanical life: 1,000,000 cycles
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 54mm x 42mm
- Weight: 0.5 kg
Key Features
- 3 position switch with off functionality.
- Rated for 12A at 400V and 690V.
- Front mounting design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Equipment switching in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 3 Position with Off 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
