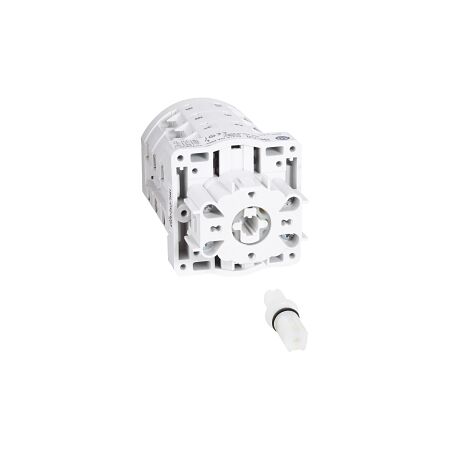

Cam Switch 4 Pole 25A | Base Mount | 90° Off-On by NHP
Cam switch with 4 poles and 25A rating—ideal for industrial machinery control and commercial electrical systems. Built for durability, with IP20 protection and base mount design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 194L Cam Switch 4Pole 25A Base Mount 90 Degree Off On
Brand: NHP
SKU: 194LA251754
Alternatively Known As: 4 Pole Cam Switch, 25A Cam Switch, DIN Rail Cam Switch
Technical Specifications
- Rated Permanent Current: 25 A
- Rated Operation Power at AC 3 400 V: 11 kW
- Rated Operation Current at AC 15 230 V: 8 A
- Rated Operation Current at AC 15 400 V: 6 A
- Rated Operation Current at AC 22A 690 V: 25 A
- Rated Operation Current at AC 22A 220 500 V: 25 A
- Rated Operation Current at AC 21A 690 V: 25 A
- Rated Operation Current at AC 1 690 V: 25 A
- Thermal Current Enclosed: 25 A
- Thermal Current Open: 30 A
- Type of Electrical Connection: Screw connection
- Mounting Method: DIN rail
- Material Housing: Plastic
- Wire Conductor Size (Rigid Cable): 1.5-6 mm²
- Wire Conductor Size (Flex Cable): 1.5-4 mm²
- Degree of Protection: IP20
- Number of Switch Positions: 2
- Operating Temperature: -25-60 °C
- Dimensions (H x L x W): 62mm x 71.5mm x 71.5mm
- Weight: 0.5 kg
Key Features
- 4 poles for versatile switching options.
- Rated for 25A with a mechanical life of 1,000,000 cycles.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 194L Cam Switch 4Pole 25A Base Mount 90 Degree Off On is available now for immediate purchase. Ideal for industrial and commercial applications.
