Cam Switch 4 Pole Off On | 20A Panel Mount | IP20 Rated by NHP
Cam switch with 4 pole design and 20A rating—ideal for industrial machinery control and commercial electrical panels. Built for versatile switching applications, with IP20 protection and durable construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

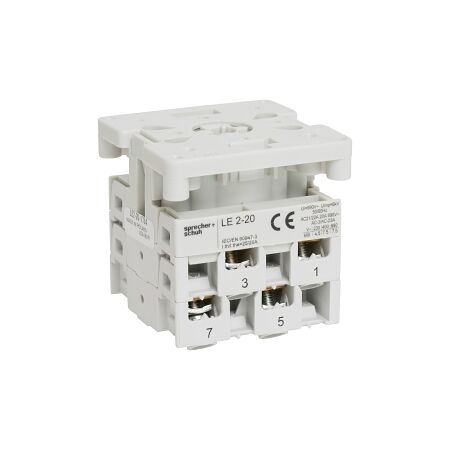

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 4 Pole Off On 20A Panel Mount
Brand: NHP
SKU: LE2201784
Alternatively Known As: Cam Switch, 4 Pole Switch, Panel Mount Switch
Technical Specifications
- Rated operation power at AC 3, 400V: 9 kW
- Rated operation current at AC 15, 230V: 7 A
- Rated operation current at AC 15, 400V: 5 A
- Rated operation current at AC 22A, 690V: 20 A
- Rated operation current at AC 22A, 220-500V: 20 A
- Rated operation current at AC 21A, 690V: 20 A
- Rated operation current at AC 1, 690V: 20 A
- Thermal current enclosed: 20 A
- Thermal current open: 25 A
- Type of electrical connection: Screw connection
- Mounting method: Front mounting
- Material housing: Plastic
- Wire conductor size (rigid cable): 1.5-6 mm²
- Wire conductor size (flex cable): 1.5-4 mm²
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 55mm x 57mm x 55mm
- Weight: 0.5 kg
Key Features
- 4 pole design for versatile switching applications.
- Rated for 20A operation, suitable for various electrical loads.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 4 Pole Off On 20A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
