Cam Switch 6 Pole 12A | Panel Mount | 90° Off-On by NHP
Cam switch with 6 poles and 12A rating—ideal for industrial control panels and commercial electrical distribution. Built for durability, with easy panel mount installation and IP20 protection.
Sign in
Please login to continue to your account.

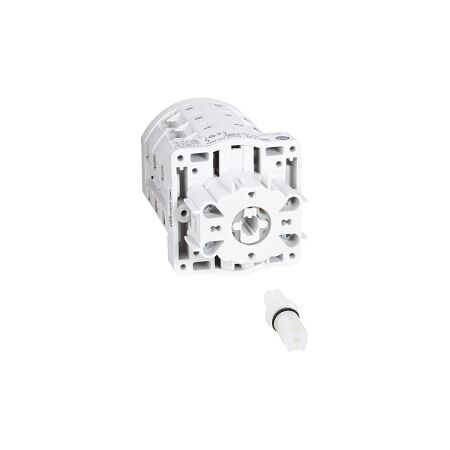

Product Name/Title: Allen-Bradley 194L Cam Switch 6Pole 12A Panel Mount 90 Degree Off On
Brand: NHP
SKU: 194LE121756
Alternatively Known As: Cam Switch, 6 Pole Switch, Panel Mount Switch
- Rated permanent current: 12 A
- Rated operation power at AC 3 400 V: 4 kW
- Rated operation current at AC 15 230 V: 5 A
- Rated operation current at AC 15 400 V: 3 A
- Rated operation current at AC 22A 690 V: 12 A
- Rated operation current at AC 22A 220-500 V: 12 A
- Rated operation current at AC 21A 690 V: 12 A
- Rated operation current at AC 1 690 V: 12 A
- Thermal current enclosed: 12 A
- Thermal current open: 16 A
- Type of electrical connection: Screw connection
- Mechanical life: 1,000,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 64mm x 42mm
- Weight: 0.5 kg
- 6 poles for versatile switching options.
- Rated for 12A permanent current.
- Front mounting design for easy installation.
- IP20 rated for protection against solid objects.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Control panels, machinery, and equipment
- Commercial: Electrical distribution and switching applications
- Complies with relevant Australian standards for electrical safety.
- Durable design ensures long service life, reducing waste.
1 year warranty against manufacturing defects.
The Allen-Bradley 194L Cam Switch is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
