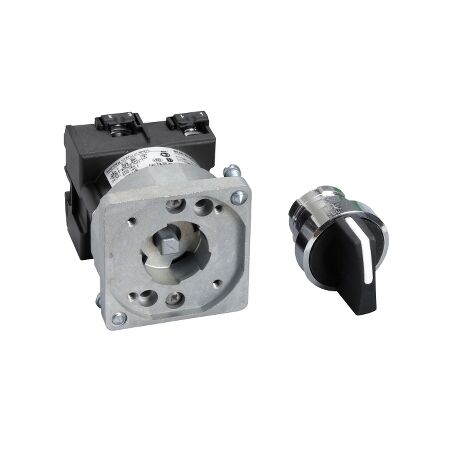

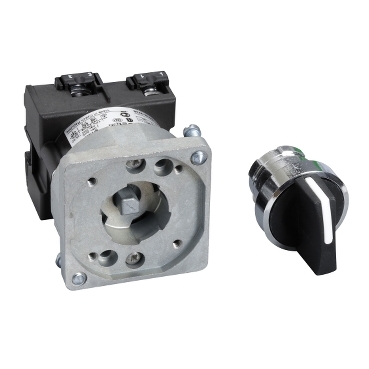

Cam Switch SCHK1SB50115Z | 690V AC | 20A Rated Current | IP65 Ingress Protection | @Pack of 1 | by Clipsal
The Cam Switch SCHK1SB50115Z is a robust cam switch designed for industrial and commercial applications, featuring a rated operational voltage of 690V AC and a current rating of 20A. With a mechanical endurance of over 1,000,000 operations and IP65 ingress protection, it ensures reliable performance in demanding environments. Ideal for control panels and automation systems, this switch is easy to install and built to last.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cam Switch SCHK1SB50115Z | 690V AC | 20A Rated Current | IP65 Ingress Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHK1SB50115Z
Alternatively Known As: Industrial Cam Switch, Rotary Cam Switch, Control Panel Switch, SCHK1SB50115Z Switch
Technical Specifications
- Type: Cam Switch
- Model: SCHK1SB50115Z
- Rated operational voltage: 690V AC
- Rated current: 20A
- Number of positions: 3
- Mounting: Panel mount
- Contact configuration: 1 pole
- Mechanical endurance: >1,000,000 operations
- Operating temperature: -25°C to +55°C
- Ingress protection: IP65 (front)
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.4 kg
Key Features
- Robust cam switch designed for industrial and commercial applications
- High mechanical endurance for frequent switching operations
- Reliable performance in demanding environments
- Easy installation with clear terminal markings
- Suitable for control and switching of electrical circuits
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Industrial machinery control panels
- Switchboards and distribution boards
- Automation systems
- Manufacturing plants
- Commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Long operational life reduces replacement frequency and waste
- Reliable switching minimizes downtime and energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CAMSWITCH SCHK1SB50115Z is available for immediate purchase. Ideal for industrial and commercial control panel applications.
