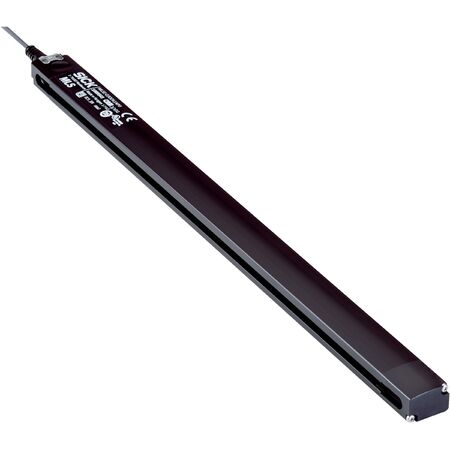

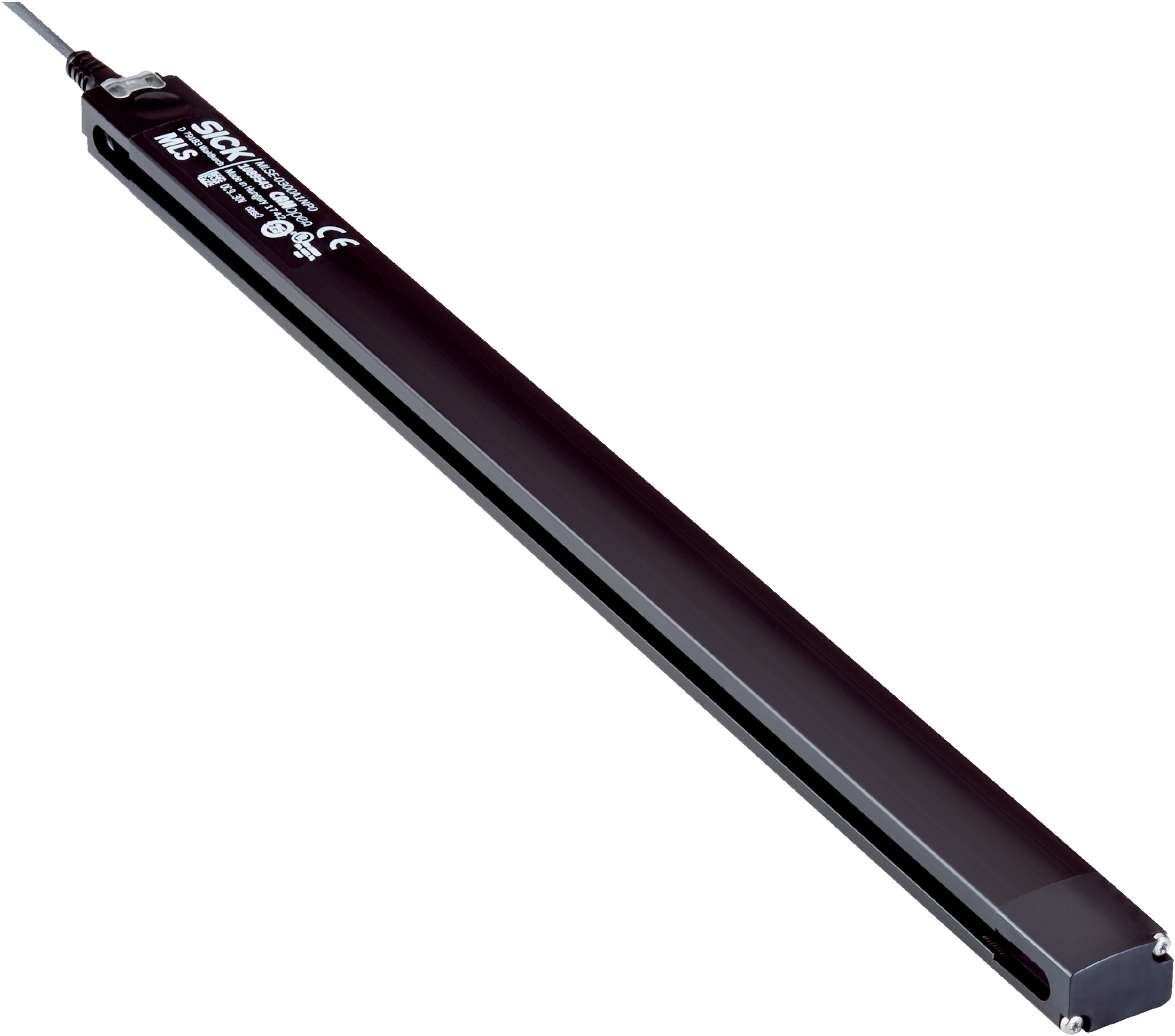

CANopen Distance Sensor | 400 mm Detection Range | IP65/IP67/IP68 Rated | by SICK
The CANopen Distance Sensor offers a detection range of up to 400 mm with a precision resolution of 1 mm, making it ideal for industrial automation and robotics applications. Designed for robust performance, it features an IP65/IP67/IP68 enclosure rating, ensuring durability in harsh environments. With reverse polarity protection and high shock resistance, this sensor is perfect for precise distance measurement and orientation sensing in various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 400 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Terminal resistor: Internal 120 Ω terminator
- Protection class: III
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Teach-in function available
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Internal terminating resistor (CAN): Yes
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- EMC compliance: EN 61000-6-2, EN 61000-6-4
- Connection type: Cable with M8 male connector, 4-pin, 0.3 m
- Material: Housing made of metal, aluminum, plastic; Cable PUR
- Orientation: 3 axes with roll, pitch, yaw measurement
- Orientation resolution: 0.02°
- Maximum rotation rate: 2,000 °/s
- Sampling rate: 200 Hz
- Dimensions (H x L x W): 40mm x 80mm x 40mm
- Weight: 0.3 kg
Key Features
- Detection range up to 400 mm with 1 mm resolution
- Operating height from 10 mm to 70 mm
- Robust enclosure rated IP65, IP67, and IP68
- Supply voltage range from 9 V DC to 30 V DC
- Internal 120 Ω terminator and short-circuit protection
- CANopen communication interface
- High shock and vibration resistance (30 g, 11 ms)
- Ambient operating temperature from -20 °C to +70 °C
- Reverse polarity protection and internal terminating resistor
- High repeat accuracy of 1 mm
- Orientation measurement with 3 axes and 0.02° resolution
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with CANopen systems and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection and positioning
- Robotics for orientation and motion sensing
- Safety systems requiring precise distance measurement
- Machine monitoring and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 600 mW enhances energy efficiency
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLSE-0400A2TP0 sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety system applications.
