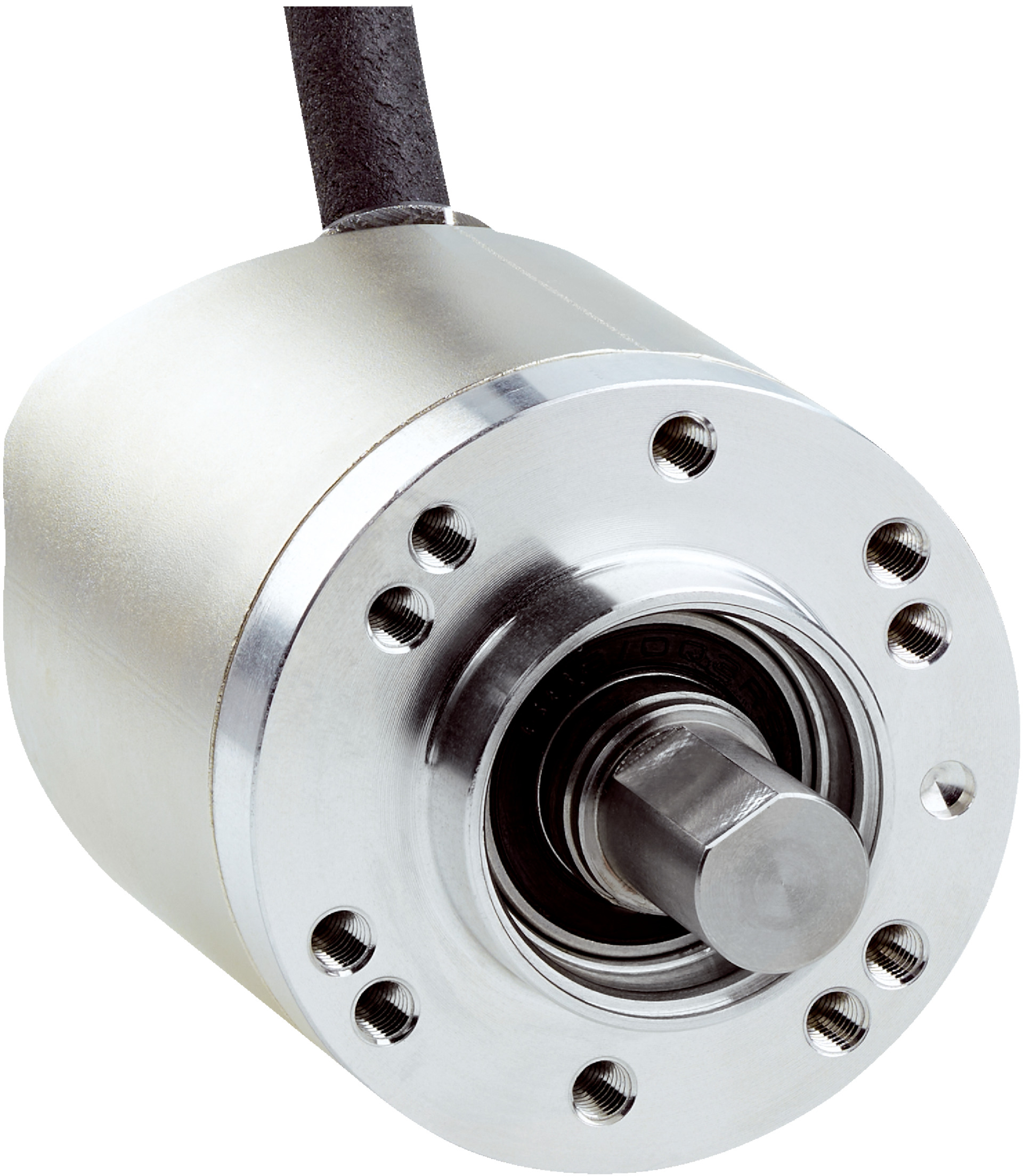

High-Resolution CANopen Encoder | 4096 Steps/Rev | IP65 Rated | by SICK
The High-Resolution CANopen Encoder offers 4,096 steps per revolution, ensuring precise position and speed measurement for industrial automation. With a robust mechanical design and an IP65 rated enclosure, it withstands harsh environments while providing reliable data for robotics and machine tools. Ideal for safety-critical systems, this encoder operates within a wide temperature range of -20°C to +70°C, making it a versatile choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 4,096 steps per revolution (12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.25° at 20°C
- Communication interface: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Materials: Stainless steel shaft, aluminum flange, zinc housing, PUR cable
- Operating speed: ≤ 9,000 min⁻¹
- Operating temperature range: -20°C to +70°C
- Enclosure rating: IP65
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- CANopen communication interface with multiple protocols supported
- Robust mechanical design with solid shaft and face mount flange
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -20°C to +70°C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High reliability with MTTFD of 270 years according to EN ISO 13849-1
- Resistance to shocks up to 100 g and vibration up to 20 g
Professional Installation Requirements
- Installation by qualified personnel familiar with CANopen systems and electrical safety standards is recommended to ensure proper setup and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring accurate angular feedback
- Machine tools and manufacturing equipment
- Safety-related systems requiring reliable encoder data
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

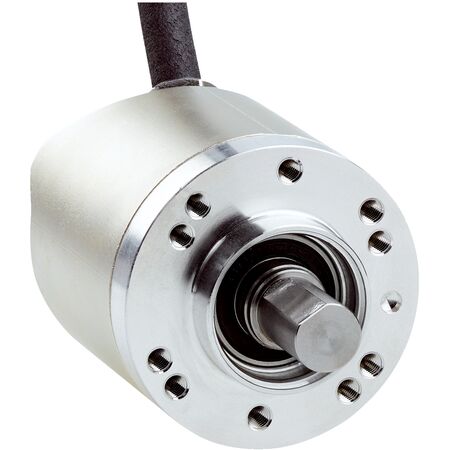

The SICK AHS36B-S4CK004096 encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise position feedback.
