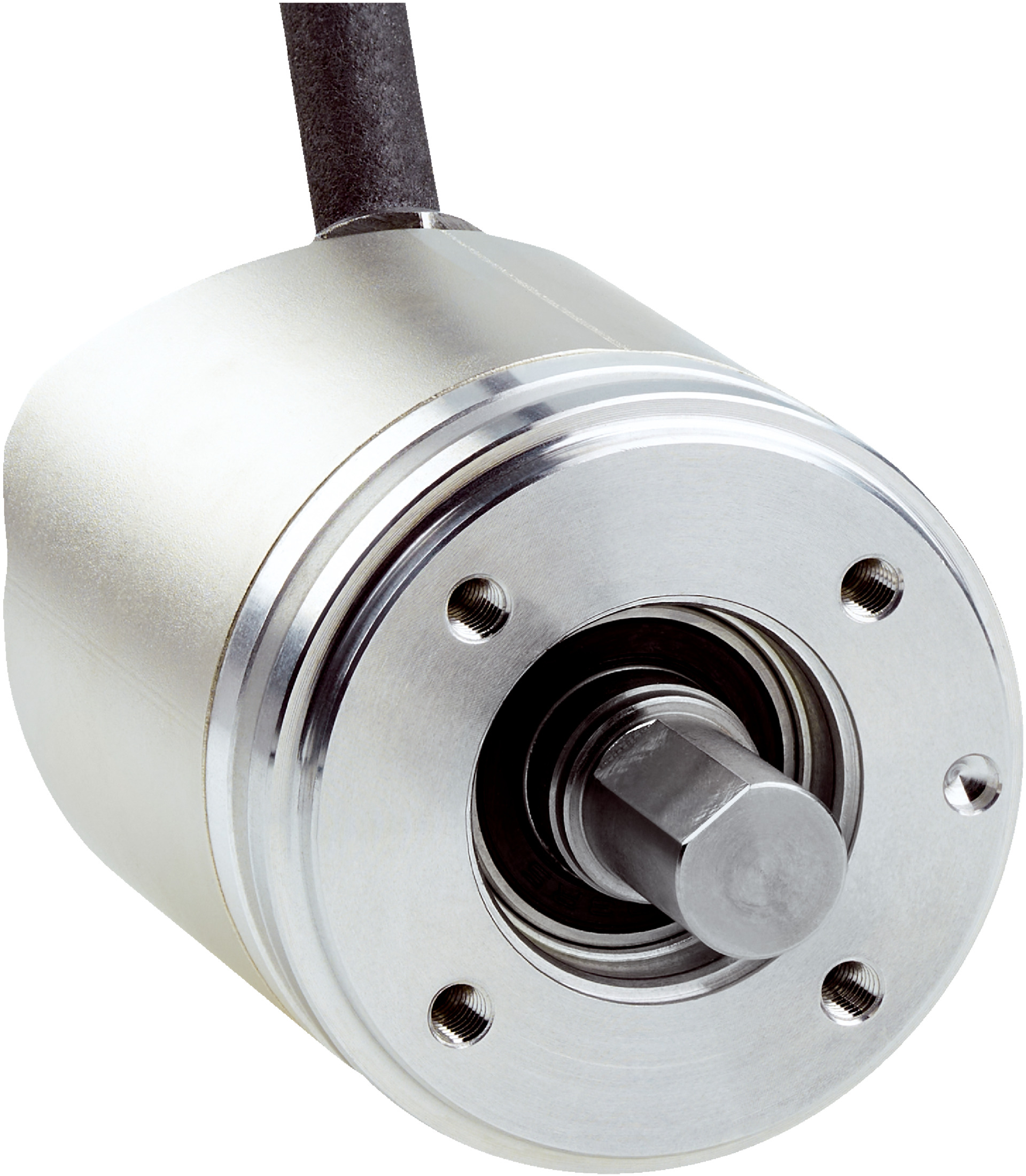

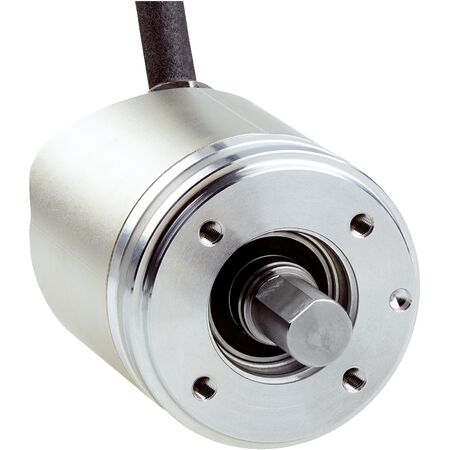

CANopen Encoder AHS36B-S2CM004096 | 4096 Steps/Rev | IP65 Rated | by SICK
The CANopen Encoder AHS36B-S2CM004096 offers high resolution with 4,096 steps per revolution, making it ideal for precise position and speed measurement in industrial automation. With a robust stainless steel shaft and IP65 rated enclosure, it ensures durability and reliability in harsh environments, perfect for robotics and safety-related motion monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Resolution: 4,096 steps per revolution (12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.25° at 20°C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Address setting: 0 to 127, default 5
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Initialization time: 2 seconds
- Process data: Position, speed, temperature
- Connection: 5-wire cable, 5 m length
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (no load)
- Mechanical design: Solid shaft with flat, shaft diameter 10 mm, shaft length 12 mm
- Materials: Stainless steel shaft, aluminum flange, zinc housing, PUR cable
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia: 2.5 gcm²
- Bearing lifetime: 3.6 x 10^8 revolutions
- Enclosure rating: IP65
- Operating temperature: -20°C to +70°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- CANopen communication interface with multiple protocols supported
- Robust mechanical design with solid stainless steel shaft and aluminum flange
- IP65 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +70°C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High reliability with MTTFD of 270 years according to EN ISO 13849-1
- Resistance to shocks up to 100 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen communication and industrial encoder mounting to ensure proper setup and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Safety-related motion monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36B-S2CM004096 CANopen Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
