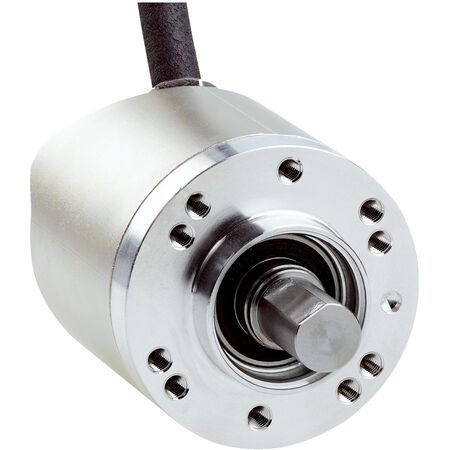

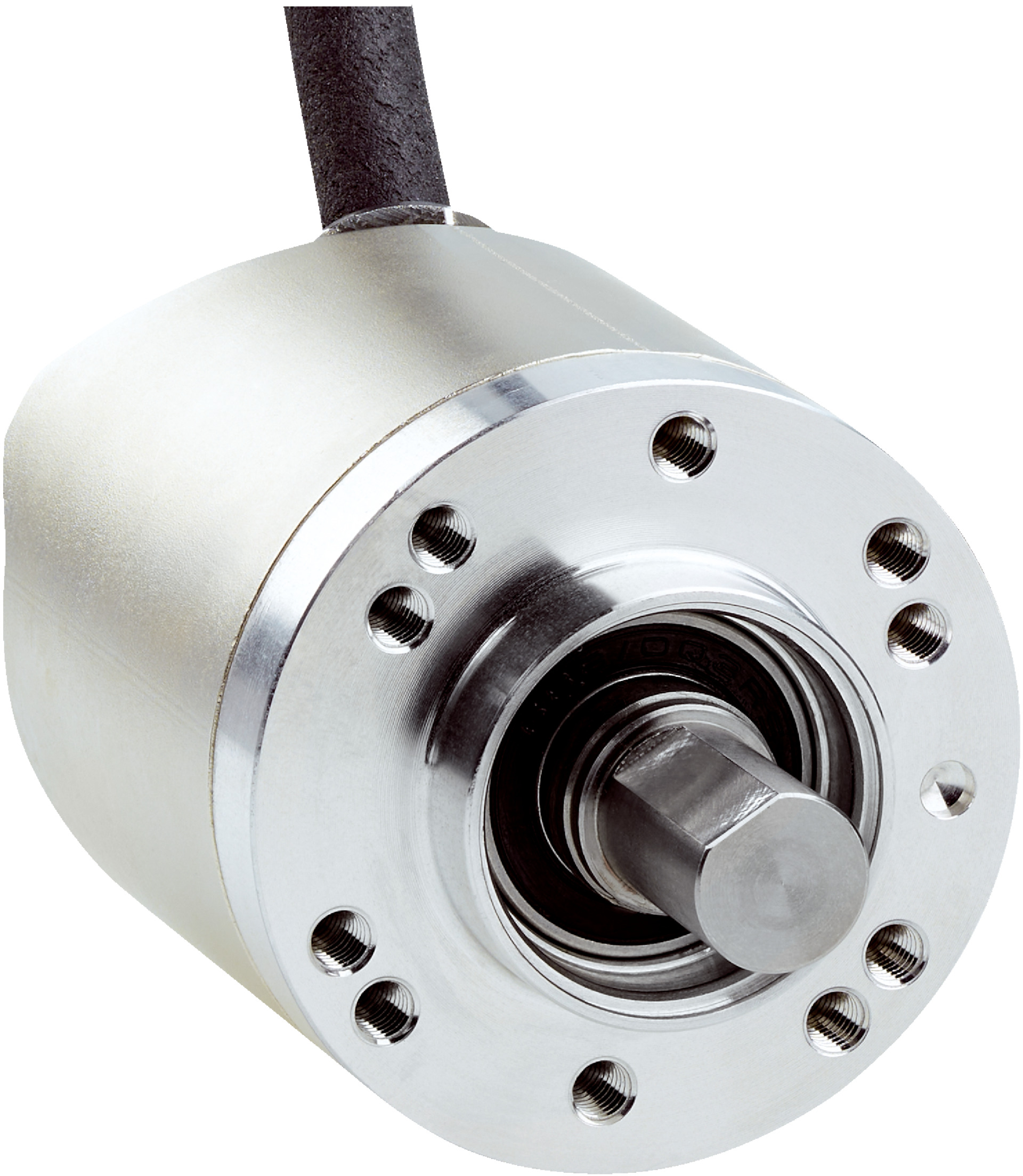

CANopen Encoder AHS36B-S3CK004096 | 4096 Steps/Rev | IP65 Rated | Robust Design | by SICK
The CANopen Encoder AHS36B-S3CK004096 offers high resolution with 4,096 steps per revolution, making it ideal for industrial automation and robotics. With a robust mechanical design and an IP65 rated enclosure, it ensures reliable performance in harsh environments. This encoder supports multiple CANopen protocols and operates within a wide temperature range, providing exceptional accuracy and durability for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 4,096 steps per revolution (12 bit)
- Error limits: 0.35° at 20 °C
- Repeatability standard deviation: 0.25° at 20 °C
- Communication interface: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 9,000 min⁻¹
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: –20 °C to +70 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- CANopen communication interface with multiple protocols supported
- Robust mechanical design with solid shaft and face mount flange
- IP65 rated enclosure for protection against dust and water
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High reliability with MTTFD of 270 years according to EN ISO 13849-1
- Wide operating temperature range from –20 °C to +70 °C
- Resistance to shocks up to 100 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high accuracy and reliability
- Machine tools and manufacturing equipment
- Safety-related applications in automated systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHS36B-S3CK004096 CANopen Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
