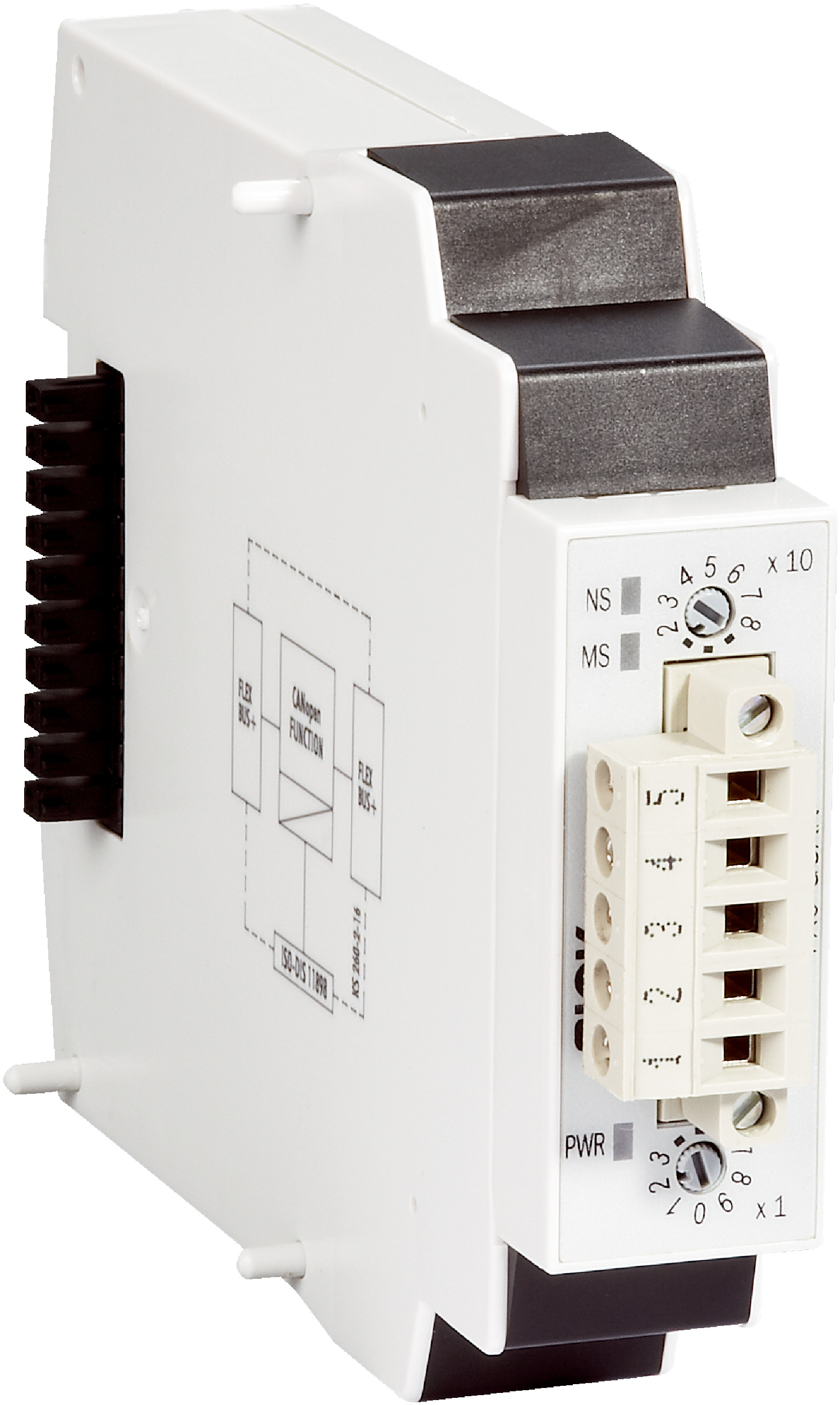

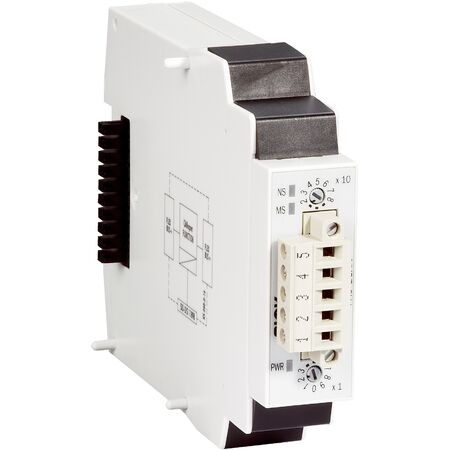

CANopen Gateway Module | 1000 kbit/s Data Rate | IP20 Enclosure | by SICK
The CANopen Gateway Module FX0-GCAN00010 is designed for seamless integration in industrial automation systems. With a data transmission rate of up to 1000 kbit/s and an IP20 enclosure rating, it ensures reliable communication in challenging environments. Ideal for factory automation, this module features a protective coating for resistance to sulfur and harsh conditions, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module type: Gateway
- Fieldbus/Industrial network: CANopen
- Configuration method: Software via Flexi Soft Designer, Safe EFI-pro System
- Data transmission rate: 1,000 kbit/s
- Connection type: 1 x female connector, Open Style, 5-pin
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Internal power consumption: ≤ 1.6 W
- Enclosure rating: IP20 (EN 60529)
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- Resistance to sulfur dioxide and mixed gases per IEC standards
- Dimensions (H x L x W): 97mm x 131mm x 23mm
- Weight: 0.15 kg
Key Features
- Gateway module for CANopen fieldbus and industrial network
- Configuration via Flexi Soft Designer and Safe EFI-pro System software
- Protective coating for resistance to sulfur and harsh ambient conditions
- Data transmission rate up to 1,000 kbit/s
- Single 5-pin female connector, Open Style
- Low internal power consumption (≤ 1.6 W)
- Protection class III (EN 61140)
- Enclosure rating IP20 (EN 60529)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen networks and industrial electrical standards to ensure proper configuration and safety.
Applications
- Industrial automation systems requiring CANopen network integration
- Factory automation for communication between sensors and controllers
- Environments with challenging ambient conditions including sulfur exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Protective coating extends product lifespan in corrosive environments, reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK official documentation for details.
Available Now
The SICK FX0-GCAN00010 CANopen Gateway Module is available for immediate purchase, ideal for industrial automation and network communication applications.
