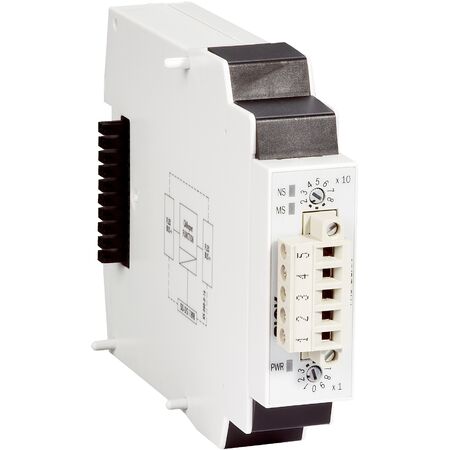

CANopen Gateway Module | 1,000 kbit/s Data Rate | IP20 Enclosure | by SICK
The CANopen Gateway Module FX0-GCAN00000 is designed for seamless integration in industrial automation systems, offering a data transmission rate of up to 1,000 kbit/s. With configuration via software tools like Flexi Soft Designer, it ensures reliable communication in factory automation and safety systems. Its IP20 enclosure rating and low power consumption make it ideal for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CANopen Gateway Module | 1,000 kbit/s Data Rate | IP20 Enclosure | by SICK
Brand: SICK
SKU: 1044076
Alternatively Known As: CANopen Gateway Module, Industrial Network Gateway, SICK FX0 Gateway
Technical Specifications
- Module Type: Gateway
- Fieldbus/Industrial Network: CANopen
- Configuration Method: Via software (Flexi Soft Designer, Safe EFI-pro System Safety Designer)
- Data Transmission Rate: 1,000 kbit/s
- Connection Type: 1 x female connector, Open Style, 5-pin
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 1.6 W
- Enclosure Rating: IP20 (EN 60529)
- Ambient Operating Temperature: –25 °C to +55 °C
- Storage Temperature: –25 °C to +70 °C
- Air Humidity: ≤ 95%, Non-condensing
- Dimensions (H x L x W): 97mm x 131mm x 23mm
- Weight: 0.15 kg
Key Features
- Gateway module for CANopen fieldbus and industrial network
- Configuration via software tools: Flexi Soft Designer, Safe EFI-pro System Safety Designer
- Data transmission rate up to 1,000 kbit/s
- Single 5-pin female connector, Open Style
- Low internal power consumption (≤ 1.6 W)
- Protection class III (EN 61140)
- IP20 enclosure rating suitable for industrial environments
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen networks and industrial automation systems to ensure proper configuration and safety compliance.
Applications
- Industrial automation systems requiring CANopen network communication
- Factory automation for data transmission and device networking
- Integration in safety and control systems using Flexi Soft Designer or Safe EFI-pro System
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Complies with China-RoHS and EU environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK FX0-GCAN00000 CANopen Gateway Module is available for immediate purchase, ideal for industrial automation and network communication applications.
