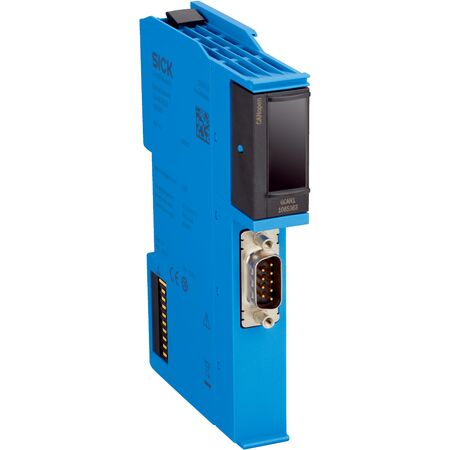

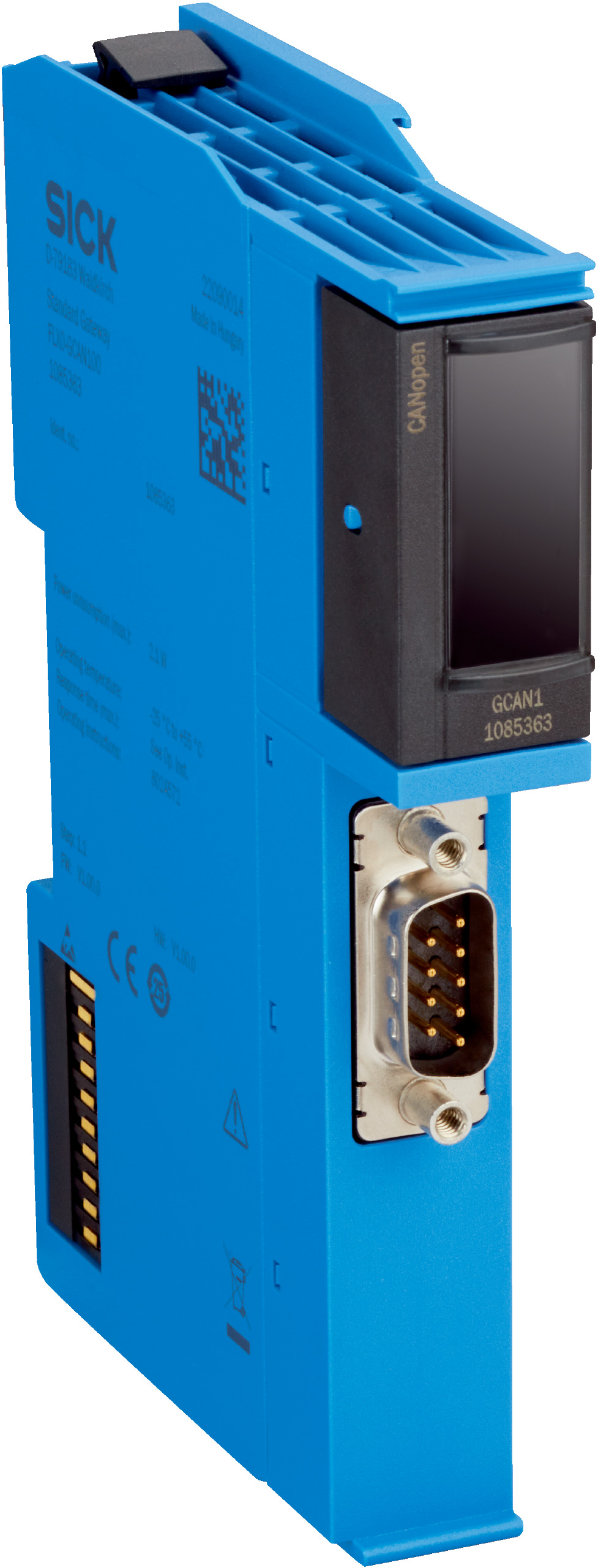

CANopen Gateway Module FLX0-GCAN100 | Low Power Loss | IP20 Enclosure | Wide Operating Temperature | by SICK
The CANopen Gateway Module FLX0-GCAN100 enables seamless data communication for safety controllers over CANopen networks. With a low power loss of ≤ 2.1 W and a robust IP20 enclosure, it's designed for industrial automation systems. Ideal for integration in safety and control networks, this module supports efficient network communication, ensuring minimal downtime and energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: Gateway
- Fieldbus: CANopen
- Configuration Method: Via Safety Designer software and TFT display
- Fieldbus Interface: Male D-Sub 9-pin connector
- Protection Class: III (EN 61140)
- Interference Resistance: EN 61000-6-2
- Interference Emission: EN 61000-6-4
- Voltage Supply: Via backplane bus
- Power Loss: ≤ 2.1 W
- Current Consumption: 85 mA
- Contamination Rating: 2 (IEC 61010-1)
- Control Device Type: Open device (IEC 61010-2-201)
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature: –25 °C to +55 °C
- Storage Temperature: –25 °C to +70 °C
- Humidity: ≤ 95%, Non-condensing
- Vibration Resistance: 1 g, 5 Hz to 200 Hz (EN 60068-2-6)
- Shock Resistance: 15 g, 11 ms (EN 60068-2-27)
- Dimensions (H x L x W): 124.7mm x 85.5mm x 18mm
- Weight: 0.105 kg
Key Features
- Enables safety controller to send and receive data over CANopen network
- Configuration via software (Safety Designer) and TFT display
- Male D-Sub 9-pin connector for fieldbus interface
- Low power loss of ≤ 2.1 W and current consumption of 85 mA
- Mounting on standard 35 mm × 7.5 mm mounting rail (IEC 60715)
- Robust mechanical design with IP20 enclosure rating
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety and network communication systems to ensure compliance and optimal performance.
Applications
- Industrial automation systems requiring safety controller data communication
- Control and diagnostic data transmission over CANopen networks
- Integration in safety and control networks in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient network communication reducing system downtime and energy waste
- Low power consumption design minimizes energy usage in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK FLX0-GCAN100 Gateway Module is available for immediate purchase, ideal for industrial automation and safety network integration.
