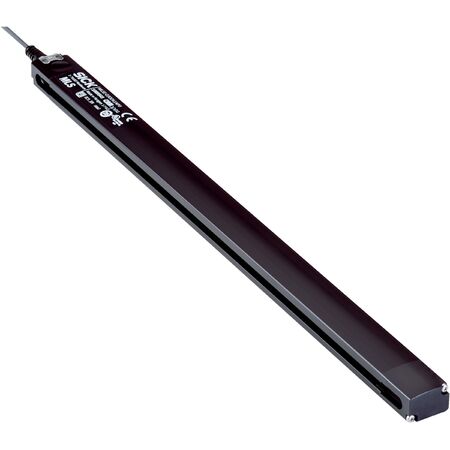

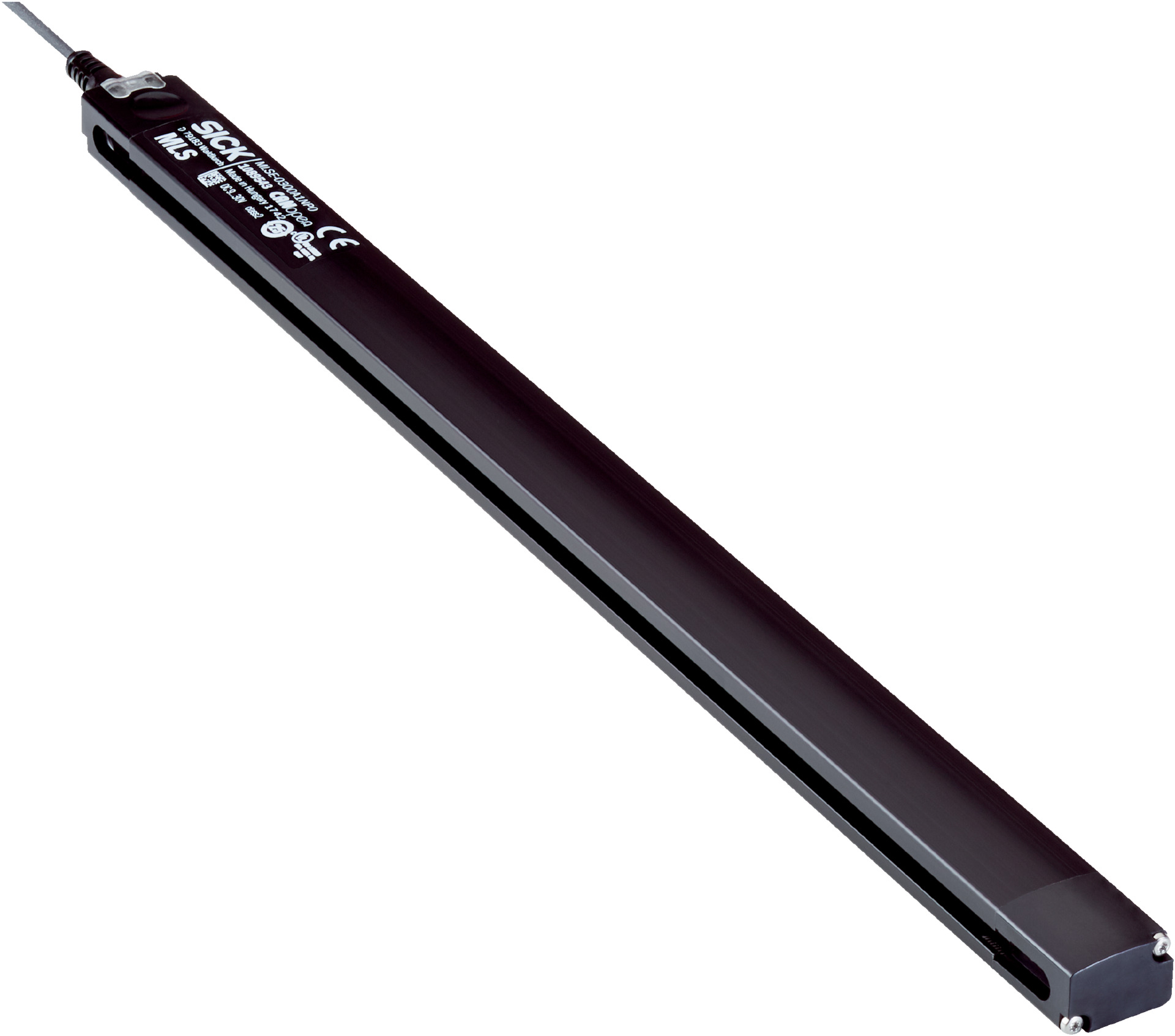

CANopen Position Sensor | 300 mm Detection Range | IP65/IP67/IP68 Rated | by SICK
The CANopen Position Sensor is designed for industrial automation, offering a detection range of 300 mm and an operating height from 10 mm to 70 mm. With high resolution and repeat accuracy of 1 mm, this robust sensor features IP65, IP67, and IP68 ratings, making it ideal for harsh environments. Perfect for robotics and machine safety applications, it ensures reliable performance with low power consumption and advanced orientation measurement capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 300 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Teach-in function available
- Reverse polarity and short-circuit protection included
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Communication interface: CANopen
- Material: Metal, Aluminum, Plastic housing with PUR cable
- MTTFD: 125 years
- Mission time: 20 years
- Orientation measurement: 3-axis Euler angles with ±180° roll/yaw and ±90° pitch
- Resolution of orientation: 0.02°
- Roll, pitch, yaw repeatability: ±1°
- Maximum rotation rate: 2000 °/s
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Detection range of 300 mm with operating height from 10 mm to 70 mm
- High resolution and repeat accuracy of 1 mm
- Robust metal, aluminum, and plastic housing with PUR cable
- Protection ratings IP65, IP67, and IP68 for harsh environments
- Supply voltage range from 9 V DC to 30 V DC with low power consumption of 600 mW
- CANopen communication interface for easy integration
- Reverse polarity and short-circuit protection
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Wide ambient operating temperature from -20 °C to +70 °C
- Advanced orientation measurement with 3-axis Euler angles and high update rate of 100 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for precise position and orientation detection
- Robotics for motion and angle measurement
- Machine safety and monitoring systems
- Manufacturing process control requiring high repeat accuracy
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 600 mW reduces energy usage
- Durable IP65-IP68 rated housing extends product life and reduces waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLSE-0300A2NP0 sensor is available for immediate purchase, ideal for industrial automation, robotics, and machine safety applications.
