CANopen Position Sensor | 300 mm Detection Range | IP65/IP67/IP68 Rated | by SICK
The CANopen Position Sensor is designed for precise position and orientation detection with a typical detection range of 300 mm and an operating height of 10 mm to 70 mm. Ideal for industrial automation and robotics, it features high resolution and repeat accuracy of 1 mm, along with robust IP65, IP67, and IP68 enclosure ratings for harsh environments. With low power consumption and reverse polarity protection, this sensor ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 300 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Terminal resistor: Internal 120 Ω terminator
- Protection class: III
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Teach-in function available
- Reverse polarity and short-circuit protection
- Internal terminating resistor (CAN): Yes
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- EMC standards: EN 61000-6-2, EN 61000-6-4
- Connection type: Cable with M8 male connector, 4-pin, 0.3 m
- Material: Housing made of metal, aluminum, plastic; Cable PUR
- Orientation: 3 axes with roll, pitch, yaw measurement
- Angular resolution: 0.02°
- Roll, pitch, yaw repeatability: ±1°
- Maximum rotation rate: 2,000 °/s
- Sampling rate: 200 Hz
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Typical detection range of 300 mm with operating height from 10 mm to 70 mm
- High resolution and repeat accuracy of 1 mm
- Robust enclosure rated IP65, IP67, and IP68 for harsh environments
- Supply voltage range from 9 V DC to 30 V DC with low power consumption of 600 mW
- Internal 120 Ω terminator and CANopen communication interface
- Shock and vibration resistant up to 30 g and EMC compliant with EN 61000-6-2 and EN 61000-6-4
- Orientation measurement with 3 axes and high angular resolution of 0.02°
- Reverse polarity and short-circuit protection included
- Wide ambient operating temperature from -20 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen communication and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position and orientation detection
- Robotics for motion and angle measurement
- Machine safety and monitoring systems
- Manufacturing process control requiring high repeatability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable IP65-68 rated housing extends product life and reduces waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

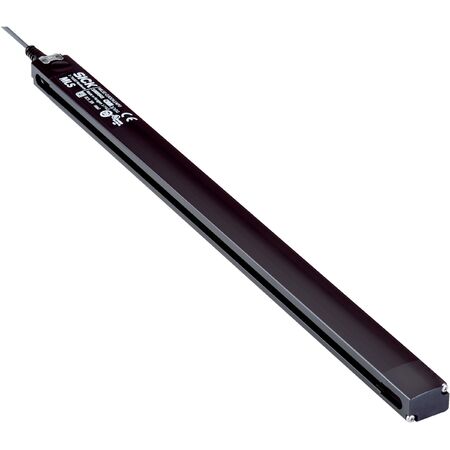

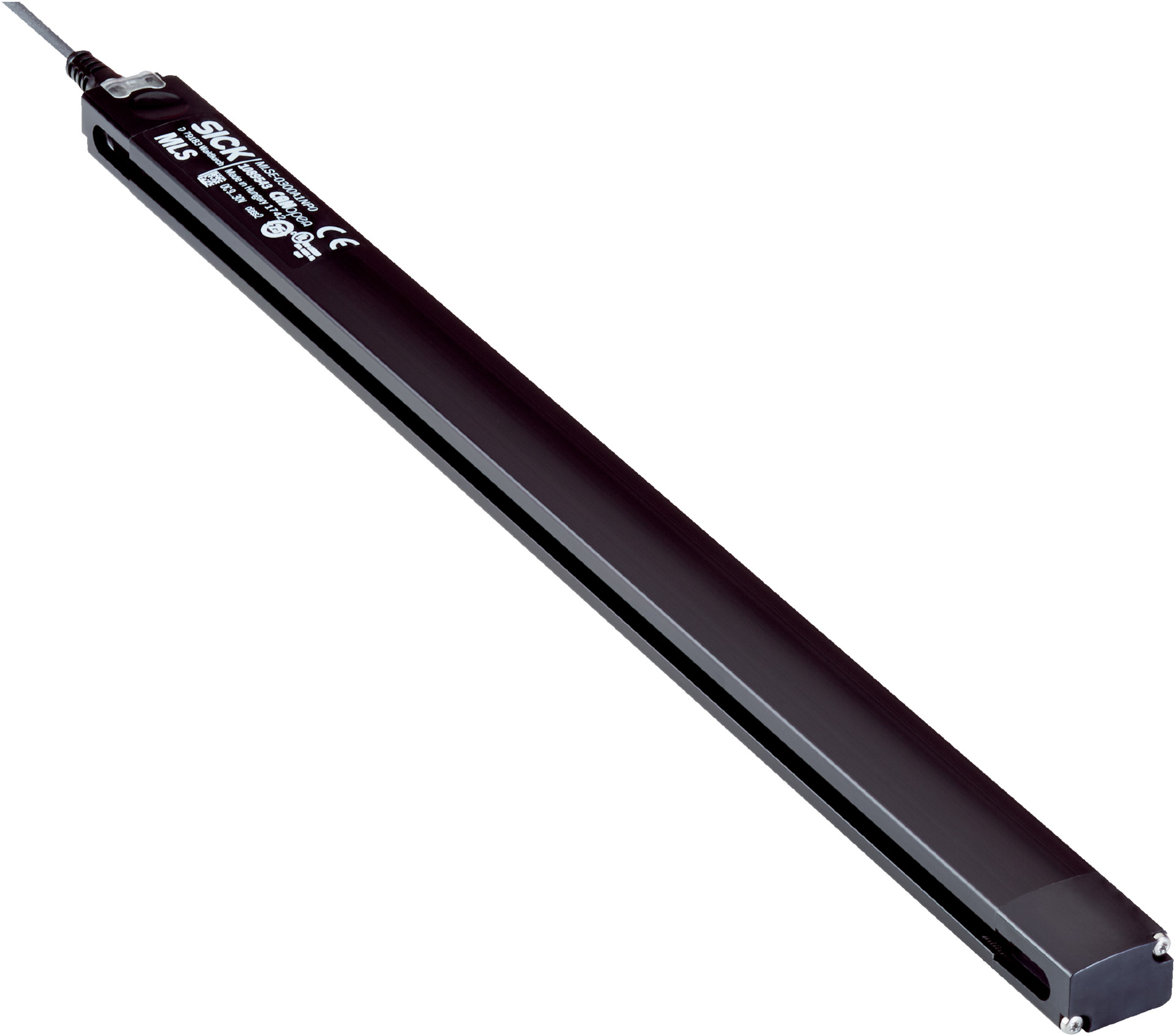

The SICK MLSE-0300A2TP0 sensor is available for immediate purchase, ideal for industrial automation, robotics, and machine safety applications.
